Kilbon, George B. (George Baldwin) · Boston, Lee and Shepard · leaf 61

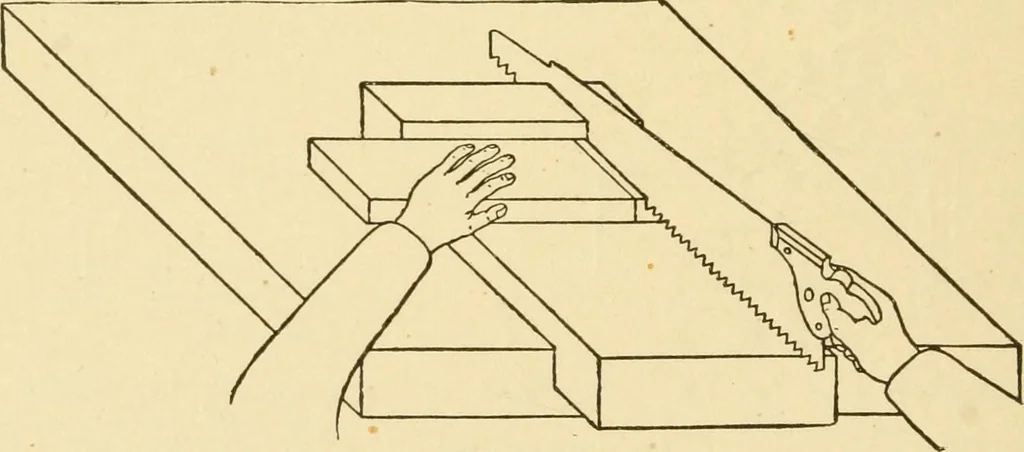

Fig. 106. Pig. 106, Uule II. In doing so always place the beam of thetry-square against the tried side or tried edge mentioned inconnection with Pig. 105. This is to insure accurate work. Place the board on the saw-block, as in Pig. 107, and sawvery close to the lines without touching them. Rule… … Fig. 107. Hold the work in the vise and plane to the lines, using theblock-plane as in Pig. 108, Rule IV. Test with try-squarewhen nearly done so as not to plane beyond the lines. In case it is not yet possible for a given pupil to saw suffi-ciently near to the lines, the wood remaining had better…
Woodwork (Manual training)
