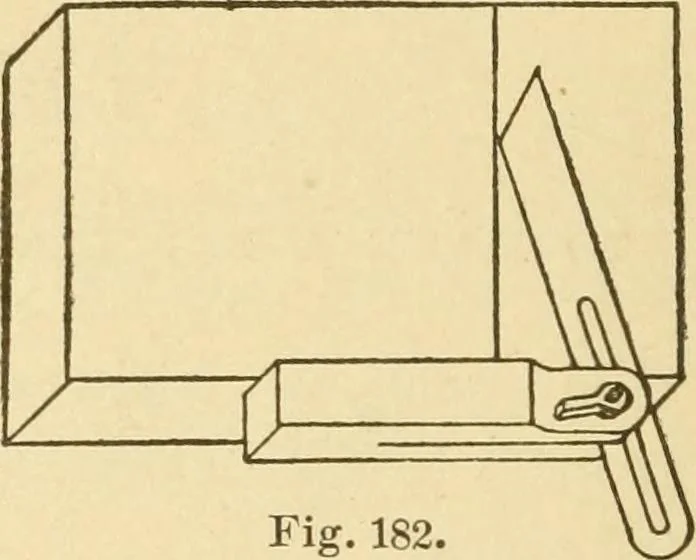

179. Fig. 180. 86 ELEMENTARY WOOBWOBK. a plan and elevation of the joint to be made. Fig. 180 is aperspective view. Draw the plan and elevation full size, and the slant height,B C will be found to be 3^3^ in. According to instructions given in Lessons VII. and VIII.,finish a board 10 in. X 3i\ in.… … Fig.182. Set the bevel to this line, as in Fig. 182, and plane one edgeof the 10 in. X ^-■^^ in. board to fit the bevel so set. The work will appear as inviews of it. the outlines of Fig. 183, which shows two
