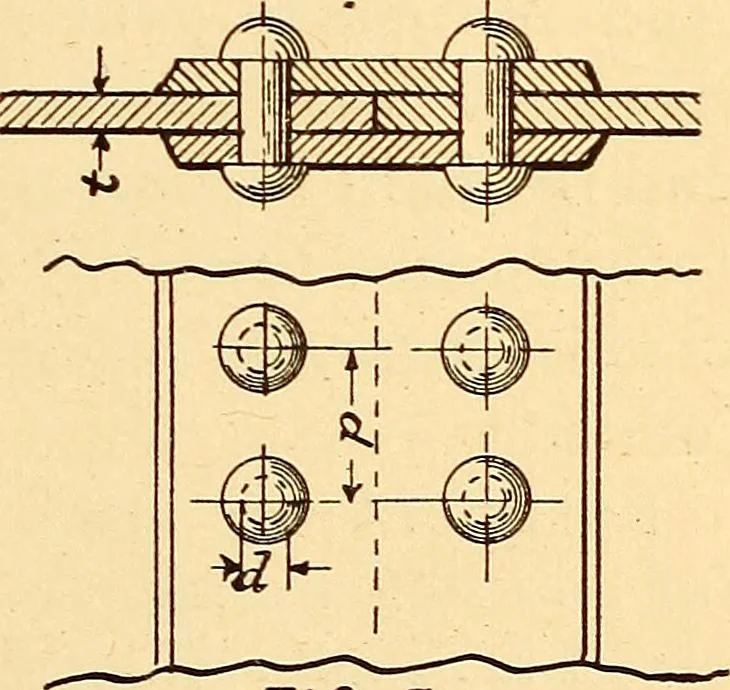

pingone upon the other (See Fig. 5).A joint of this kind has twocover or splice plates, one ateach side and each of whichlaps over the abutting platesor plates to be joined. Therivets at each side of the jointpass through the two coverplates and through the plate tobe joined, lying between… … FIG. 5 s„= 96 Riveted Joints The stresses in butt joints, single riveted, double shear;Tensile Stress; the same formula for single rivetedlap joints is used or o- P 4 Kp-d) Bearing.—The same formula as for single riveted lapjoints in like manner holds good here, also; or Ptd In both cases the…
