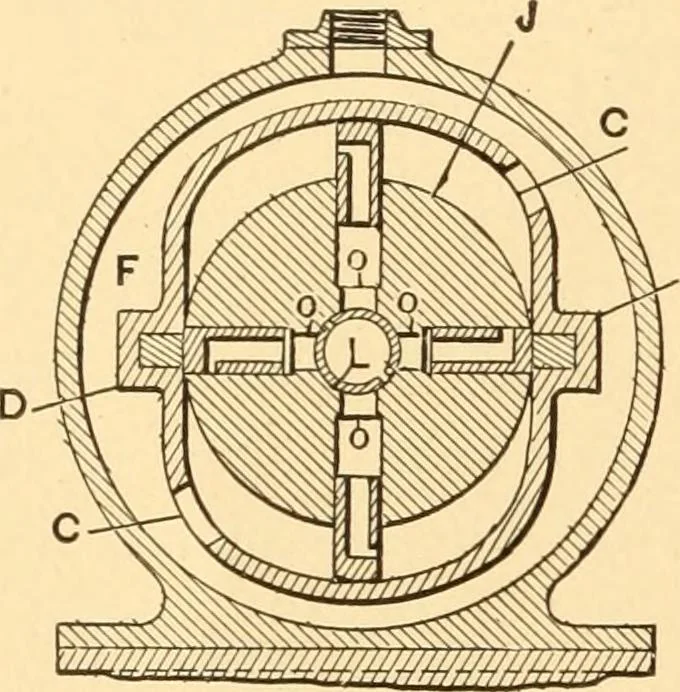

TTTTTTTTnTTTTTTTTTTTTTTTmfmTTmi WASTE GASES. Cold air is blown through theannular chamber, betweenthe boiler and the chimney,by a fan, heated and dis-tributed for heating rooms.Additional draught maybe given to a chimney by ahigh-pressure blower andjet nozzle in the uptake. … 248. ROTARY ENGINE. Takessteam through the shaft L. The abutmentpistons, o, 0, o, o, are pushed outward byD the steam pressure and have ports that areopened after passing the closure blocksD, D. The steam ports are closed by push-ing in of the abutment pistons at the ex-haust ports C, C. E, exhaust…
