Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley Publishing · leaf 182

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1914, leaf 182

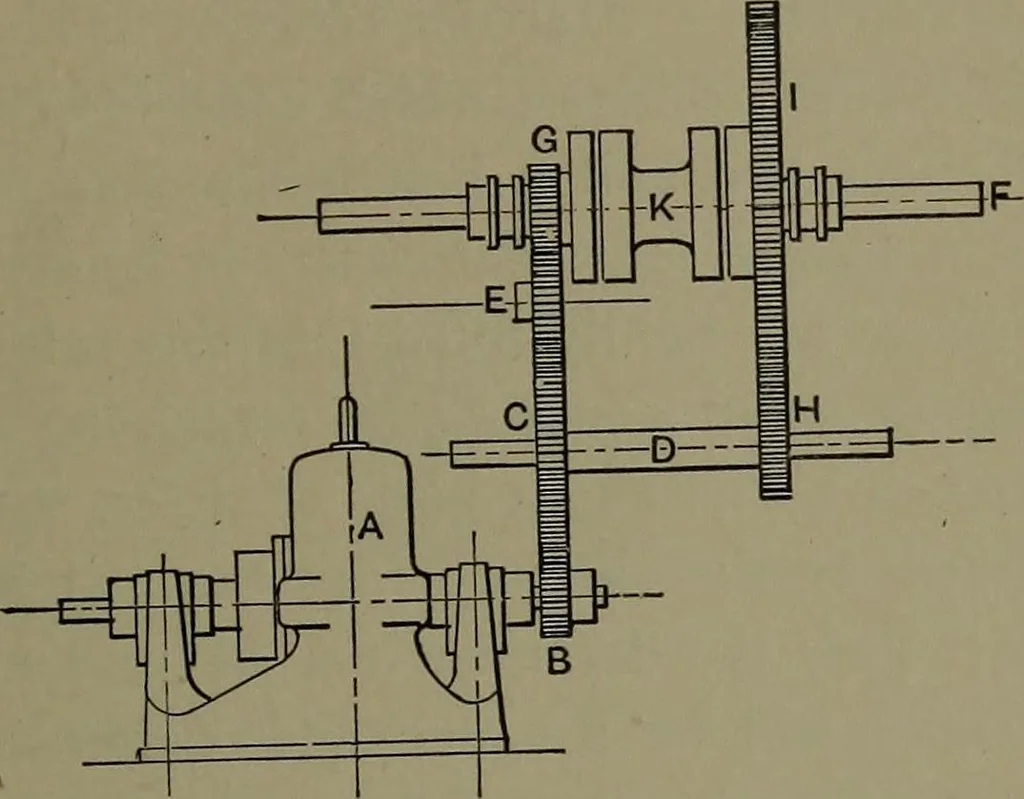

ELECTRIC POWER AND. DEVICES. 179 … 432. ELECTRO-MAGNET-IC CLUTCH. Reversechange speed from a singlepinion. A is the motor andB the motor pinion, drivinga gear C which is keyed to ashaft D. From shaft D themotion can be transmitted toshaft F, either through gearsC E and G, or through gearsH and I—the clutch arrange-ment being the…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
