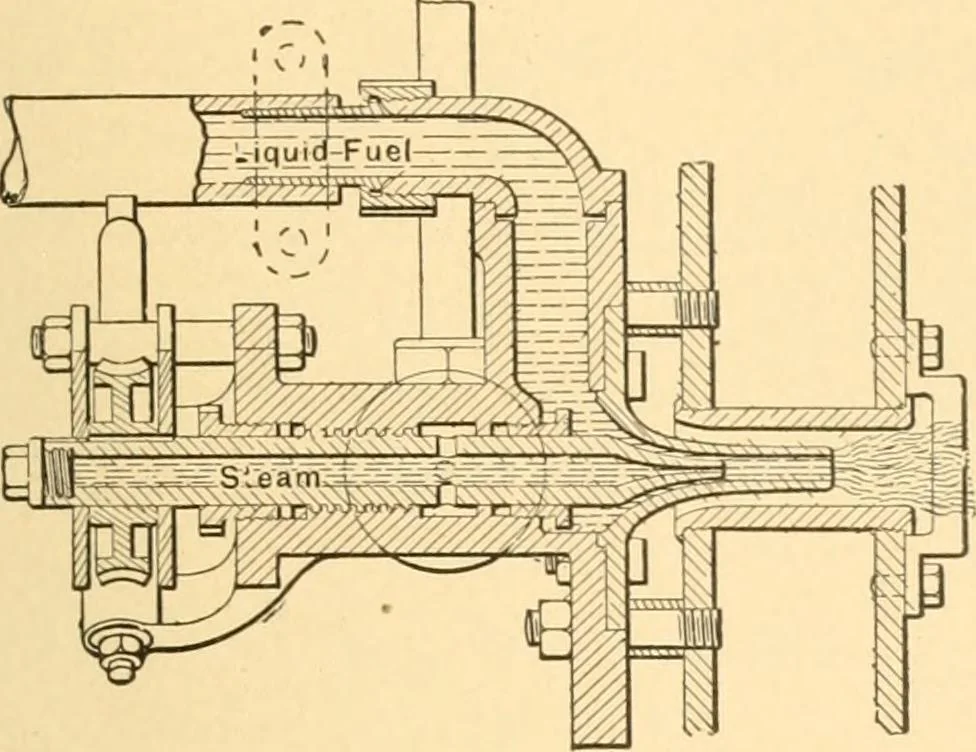

The steam, oil, and air chambers are very wide and spread a broadflame. Nos. 108, 109, no, III, show the burner in detail. GENERATION OF POWER, STEAM. 63 112. LIQUID FUEL BURNER. Urquhart Locomotive type. The air nozzles are fixed, steamnozzle is movable by a screw andworm gear and regulates the… … 113. OIL FUEL FURNACE, for heating and setting tires. Thecombined oil and air enter the hood through a peculiarly shaped expansion nozzle, which effec-tually combines them and spreadsthem outward at the same time.The air pipe connects with achamber D, which has a cockfor draining off water. A…
