Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1910)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The N. W. Henley publishing company · leaf 94

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1910, leaf 94

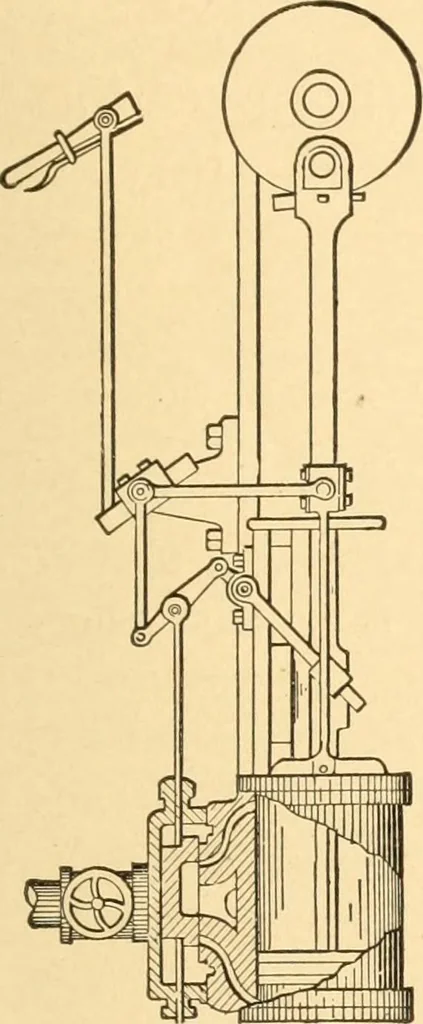

203. NOVEL VALVE GEAR. The crank-pin arm is pivoted to the lever R at E, and tothe link block B, and also to the valve rod asshown. The motion of the valve is controlledand reversed by rocking the link L. STEAM POWER APPLIANCES. 93 … 204. REVERSING GEAR without eccen-trics. The valve stem is connected to the middleof a short Hnk, one end of which is pivoted to thecrosshead bar, and the opposite end to the radialbar, which in turn is pivoted to the link block.The latter member consists of a block of irongrooved to fit the…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
