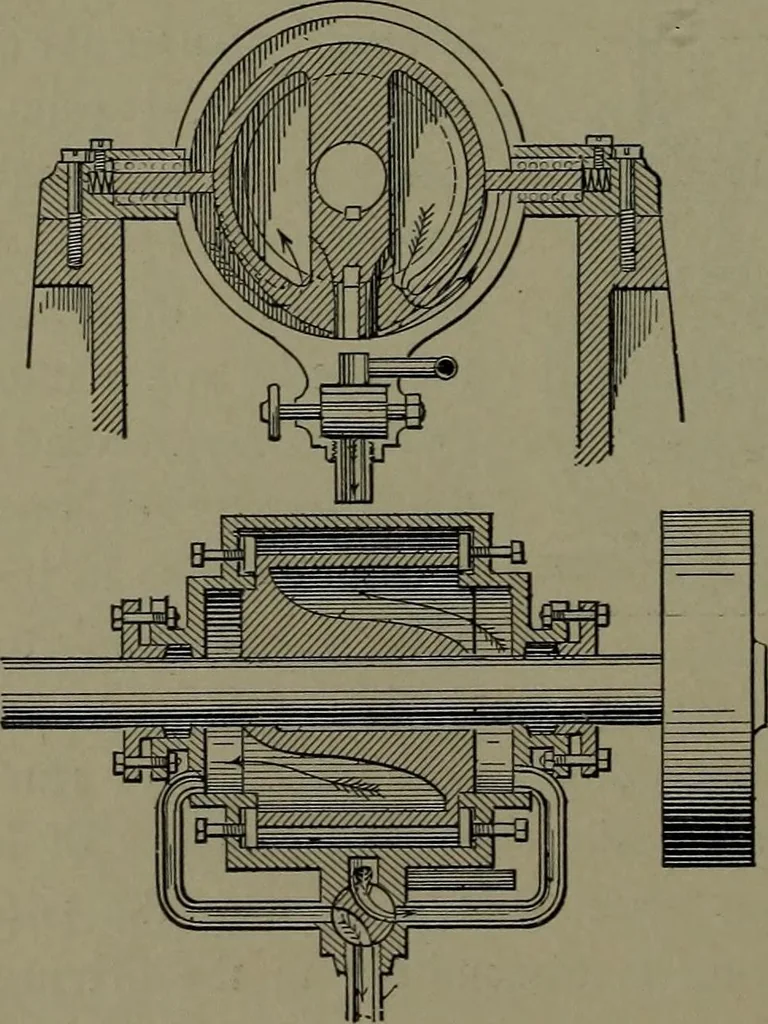

ieldingblock in a recess on its periphery,the eccentric also acting alternatelyto press back abutment blocksadapted to slide on antifrictionball bearings in recesses in thearms of the casing. The steamsupply pipe connects with a pas-sage communicating with a circularchamber in which is a rotary… … STEAM POWER APPLIANCES. lo; right hand pipe. The valve chamber also connects with a steam dis-charge pipe, the valve being turned by means of a handle or wheel todirect the steam into one or the other of the branch tubes, when theopposite tube will form the outlet pipe for reversing the engine.…
