Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley Publishing · leaf 136

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1914, leaf 136

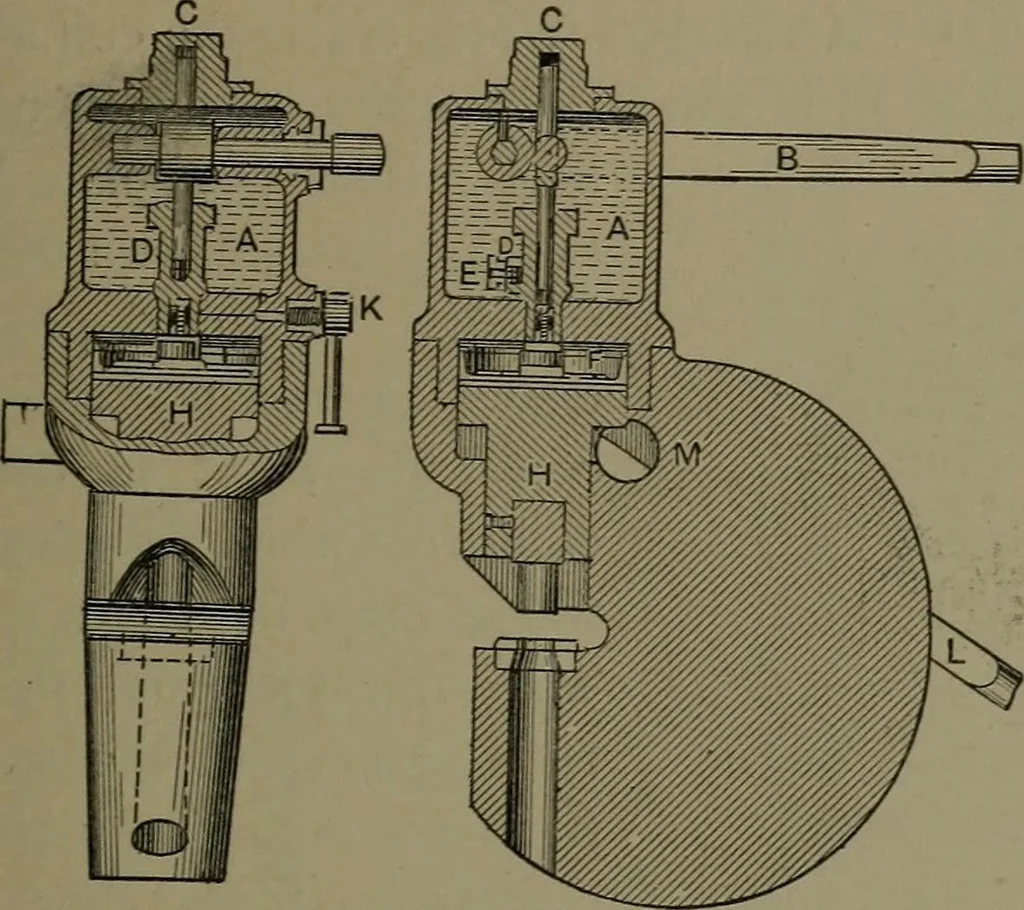

HYDRAULIC POWER AND APPLIANCES. 133 … 319. HYDRAULICPUNCH. A small plungerin the cylinder D, with in-let valve E and dischargevalve below, is operated bythe lever B, to give greatpressure to the ram H, towhich is attached the punch.On opening the by-passvalve K, the ram is liftedby the lever L and revolv-ing wedge M, pushing theoil…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
