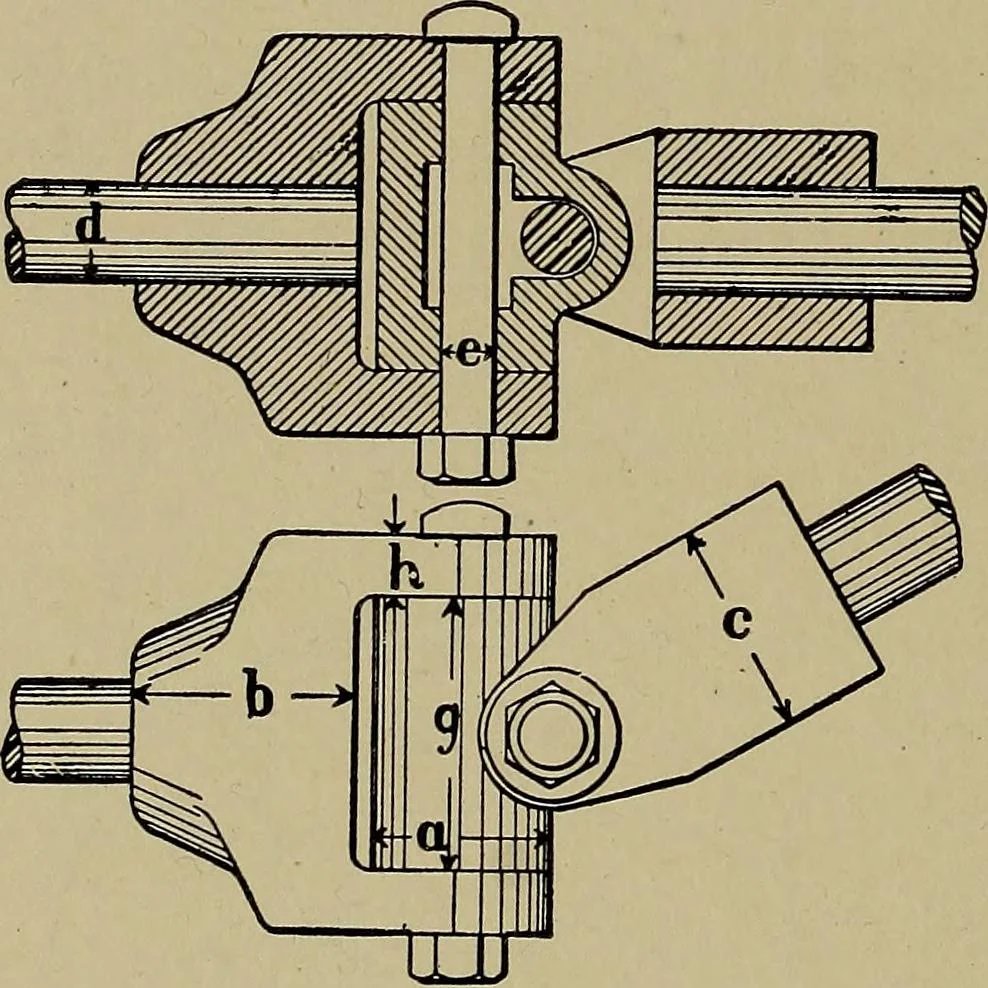

Universal Couplings. In case two shafts are not in line andthe angle between them is less than 45° they may be connected by auniversal coupling, as shown in Fig. 46. There is an objection to thiscoupling, and that is that the velocity ratio of the two shafts is a con-stantly varying one, although… … Fig. 46. Universal Coupling MACHINE DESIGN 77 used on a shaft 2 inches in diameter. The hub is 3 inches long andcarries a standard key. The bolt circle is 7 inches in diameter, andit is desired to use f-inch bolts. How many bolts are needed to trans-mit 60,000 inch-pounds for a fiber stress in the…
