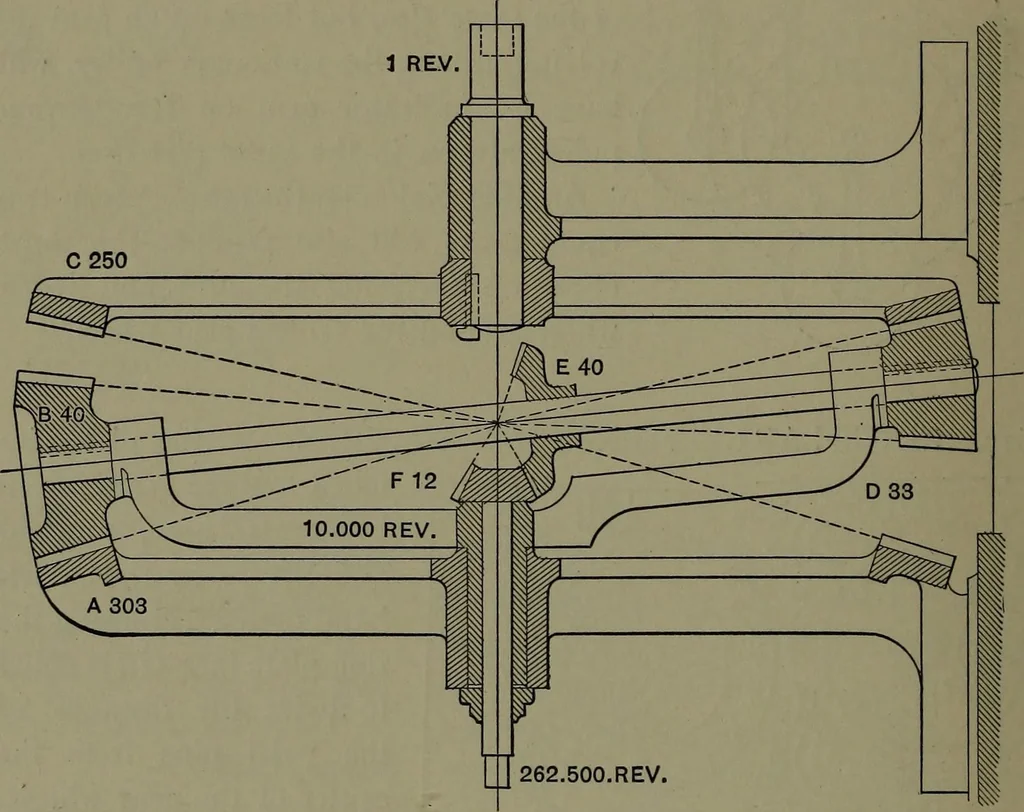

238 GEARING AND GEAR MOTION, ETC. 619. EPICYCLIG TRAIN. In which 262,500 revolutions of theleft side shaft must be made to produce one revolution in the right sideshaft. … The order of teeth, as marked on the diagram, beginning with the fixedgear A, which has 303 teeth; B, on the cross-arm shaft, 40 teeth; D, atthe other end of the cross-arm shaft, ss teeth; E, also fixed to the cross-arm shaft, 40 teeth; F, on the high-speed shaft, 12 teeth; C, on theslowest wheel…
