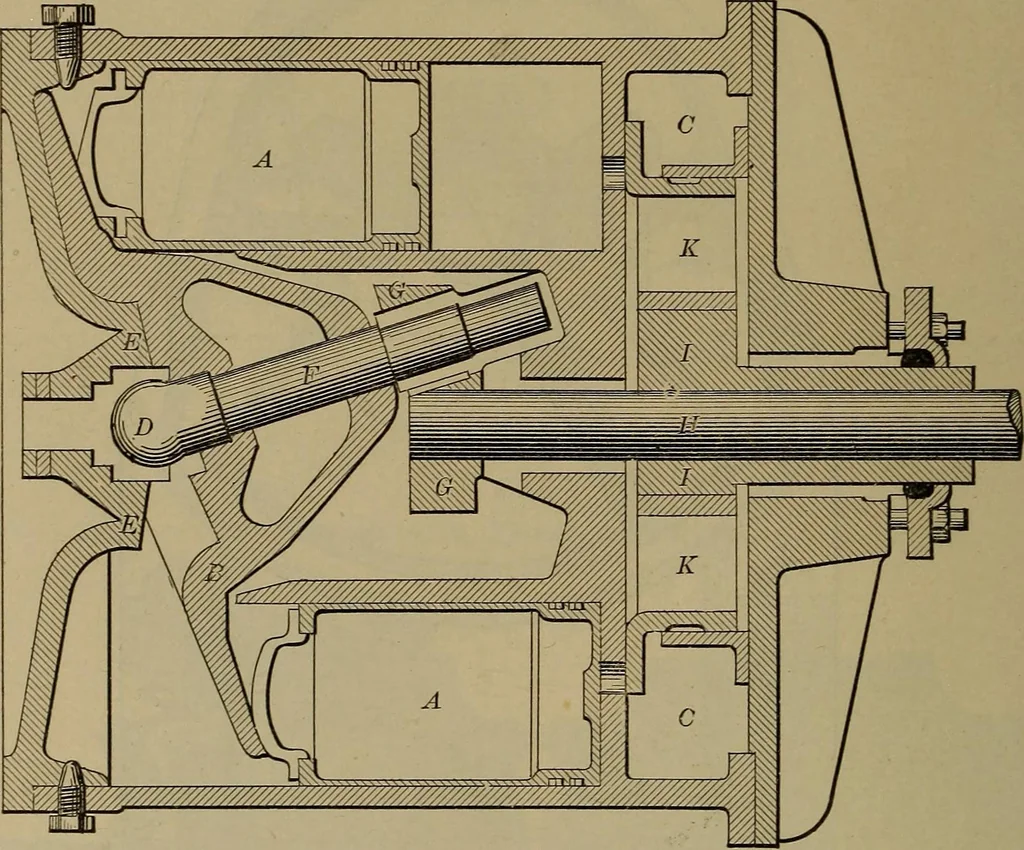

h press six single-acting pistons which 66 MECHANICAL ENGINEERING OF POWER PLANTS. receive steam upon their right-hand ends only. The left-handends bear upon the vibrating disk, which receives a rollingvibrating motion around a spherical joint at D. It will beseen that the axis F of the rolling… … Fig. 49. it can be a simple disk which travels with an eccentric motionaround an eccentric. /. The form of mechanism described byRankine under the name of Hunts Z-crank engine is adesign of similar character (Rankines Machinery and MillWork, edition of 1876, page 273). 33. Sundry Special…
