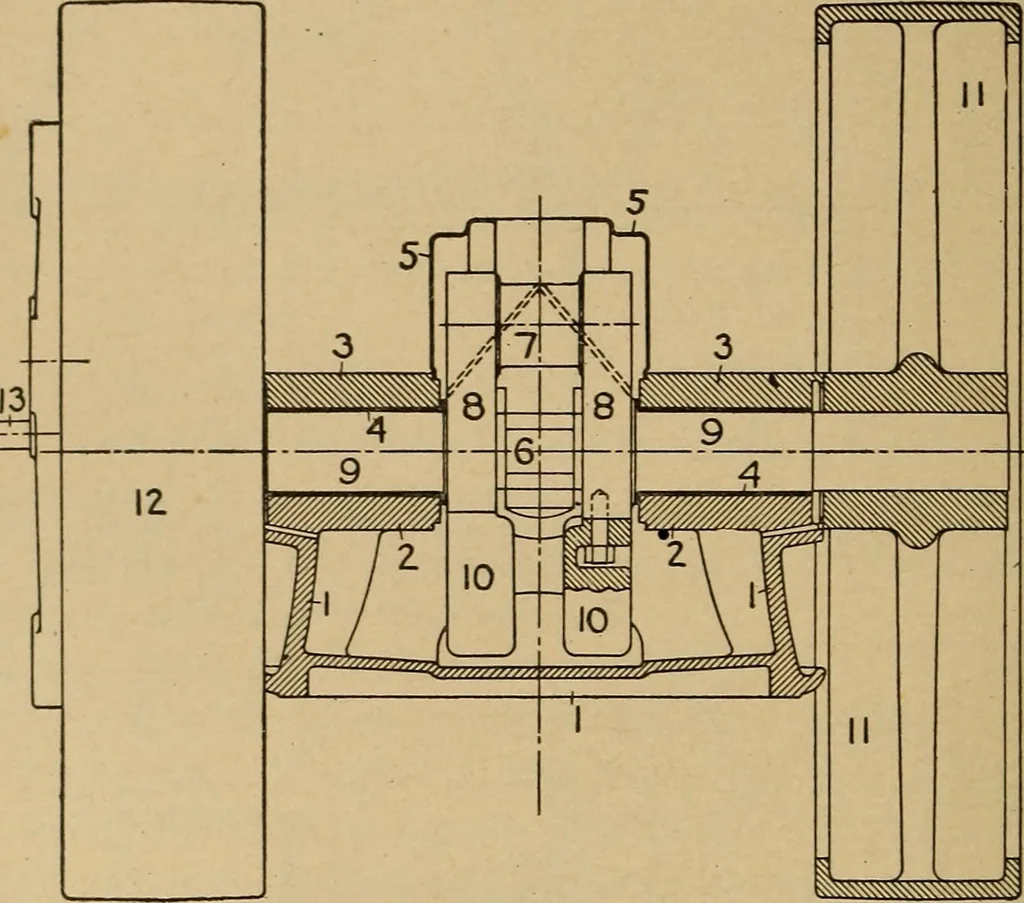

ing or four-bar type. In Figs. 3 and 6, the crosshead is of the boxor trunk type, sliding between guides placed symmetrically above andbelow the axis; the rubbing surfa-ces are on separate shoes, with wedgeadjustment to take up wear. (d) The Connecting Rod. — It is through the motion of this… … Fig. 7. — Engine in Fig. 2, Cross Section at Bearings. 1. Engine bed. 5. Oil guard. 10. Counterweights 2. Main bearings. 6. Wrist pin. 11. Plain wheel. 3. Bearing caps. 7. Crank pin. 12. Governor wheel 4. Bearing shell, of babbitt 8. Crank webs. 13. Eccentric pin. metal. 9. Shaft, journals. method…
