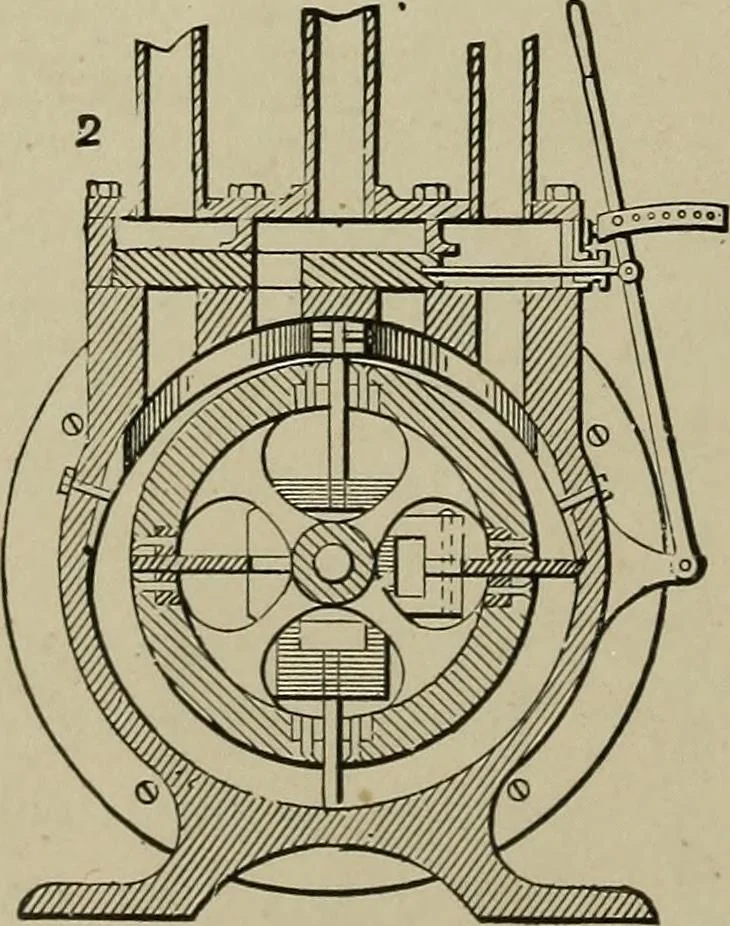

inward as theother moves outward, and vice versa. Theouter ends of the pistons engage the innersurface of part of the cylinder and partof an abutment in the cylinder. Theabutment is made in two parts, bolted attheir outer ends to the cylinder, and con-nected with each other at their inner endsby… … STEAM POWER APPLIANCES. I05
