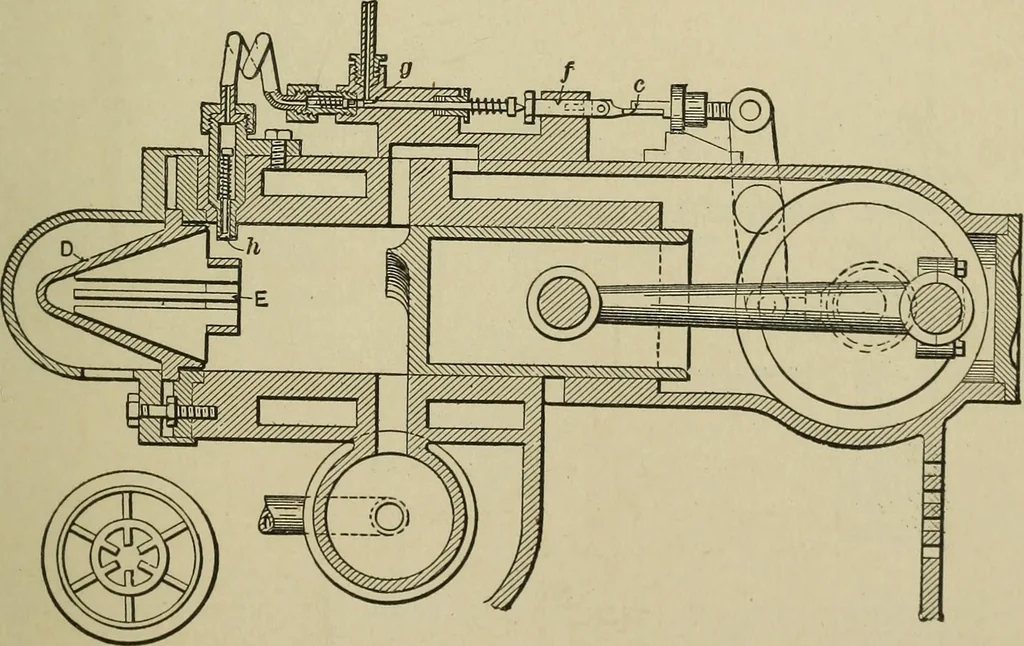

actingon a single crank. Casing of boileris removed to show its construction. The exhaust vapor is condensedin a keel condenser and returned tothe tank. The boiler pressure givesforce to the vapor jets in the Bunsenburners of the furnace. 270. KEROSENE OIL ENGINE. Two-cycle Weiss type.E, D, conical… … piston g, for a measured charge of oil. The hit or miss is regulated bythe lifting of the pick blade on the incline of the wedge beneath thecollar of the pick blade, which is made adjustable by the nut and screwon the pick blade. The wings of the conical vaporizer are shown inthe section. Il6…
