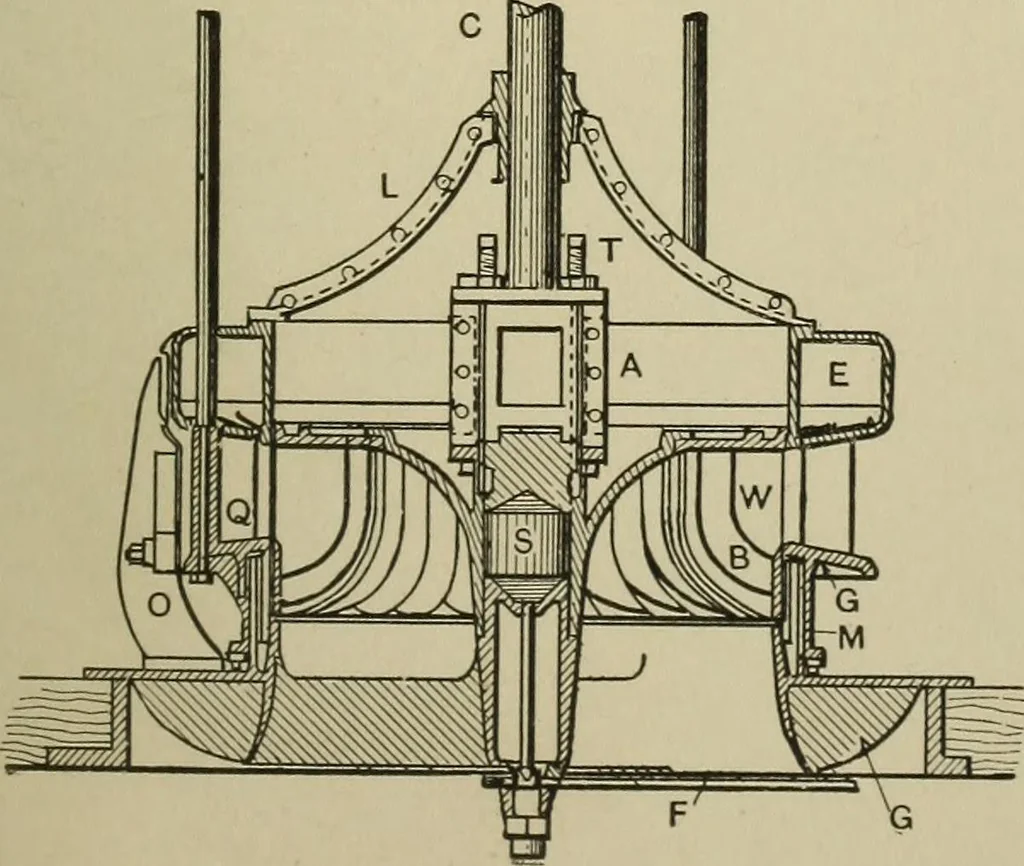

e placed in a neutral position so en-gine may turn without driving the motors. 332c. INWARD FLOW TURBINE. These water wheels aresurrounded by annular cases in which guide passages direct the water inwardly to the wheelbuckets. In the form.shown a double curve isintroduced in the form ofthe inwardly… … 138 HYDRAULIC POWER AND APPLIANCES. buckets are formed of sheet metal, either iron, steel or bronze,stamped in dies, and having projecting tenons on their edges, by-means of which, when placed in a suitable mould, the connectionbetween the bucket and the rims of the wheel, which are cast aroundthe…
