Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 217

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 217

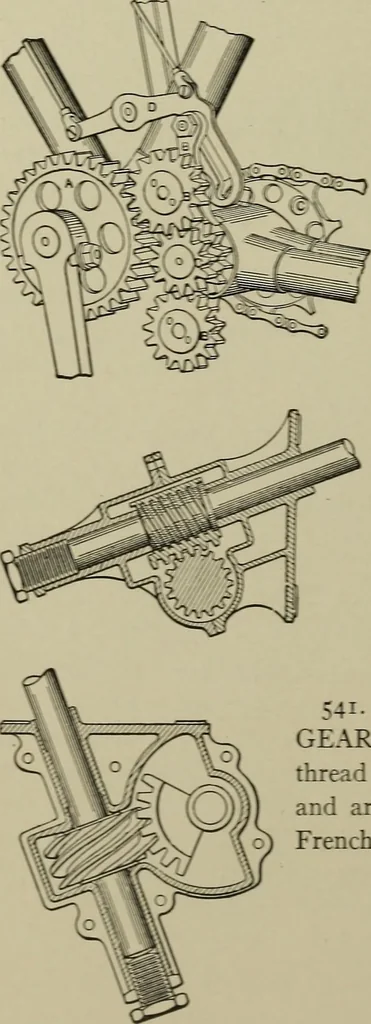

Bi andB2. By the action of the lever D. Biand Ci. or B2 and C2 are thrown intogear with A, thus giving a gear whichcan be varied in a great range of ratio. 540. AUTOMOBILE STEER-ING GEAR. The steering shafthas a double thread screw and nutwith rack attached, which turns apinion to operate a shaft… … ROAD AND VEHICLE DEVICES, ETC. 213
