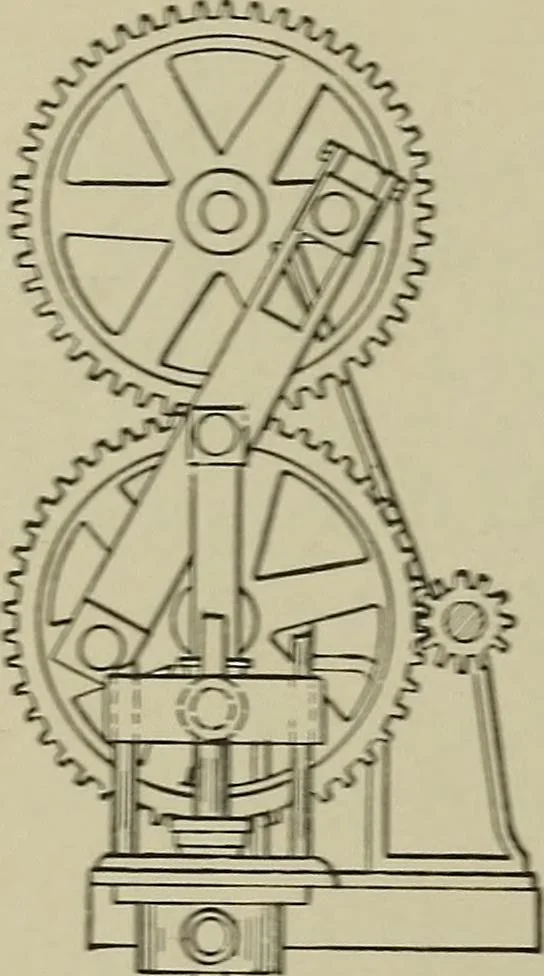

2:6 BEARING AND GEAR MOTION. ETC. … 611. CRAXK SUBSTITUTE. The gearwheels pinioned to the link, to the center of whichthe pump rod is pinioned, give a parallel motionto the pump, thus avoiding the lateral thrust of acrank. 612. SUN AND PLANET MOTION :y sprocket wheels and chain. The central sprocket on the pul-ley shaft is fixed. The…
