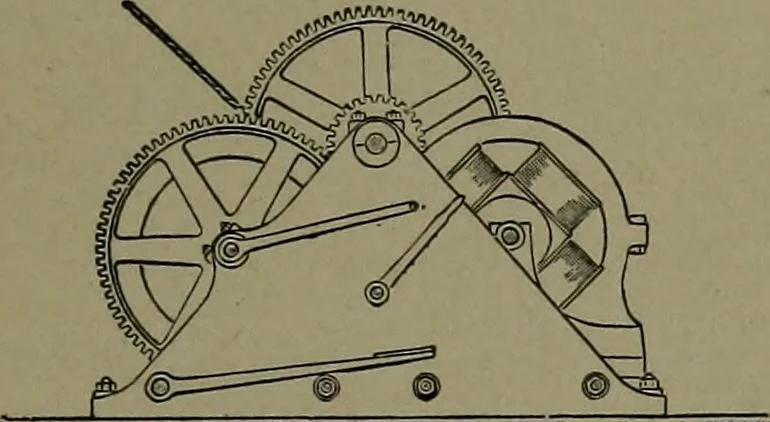

754. ELECTRIC PERFORATING PEN, • Edison model. Consists of a small pointedtube with a perforating needle on the insidevibrated by a small electro-magnetic motorfixed on top of the pen. A, B, Armaturecoils on iron studs fixed to frame; Q, R, re-volving arm and fly-wheel; Z, commutator;N, M, O,… … 755. ELECTRIC HOIST.—The footlever is the friction brake. The left-hand lever is for release, the right-handlever is the starter.
