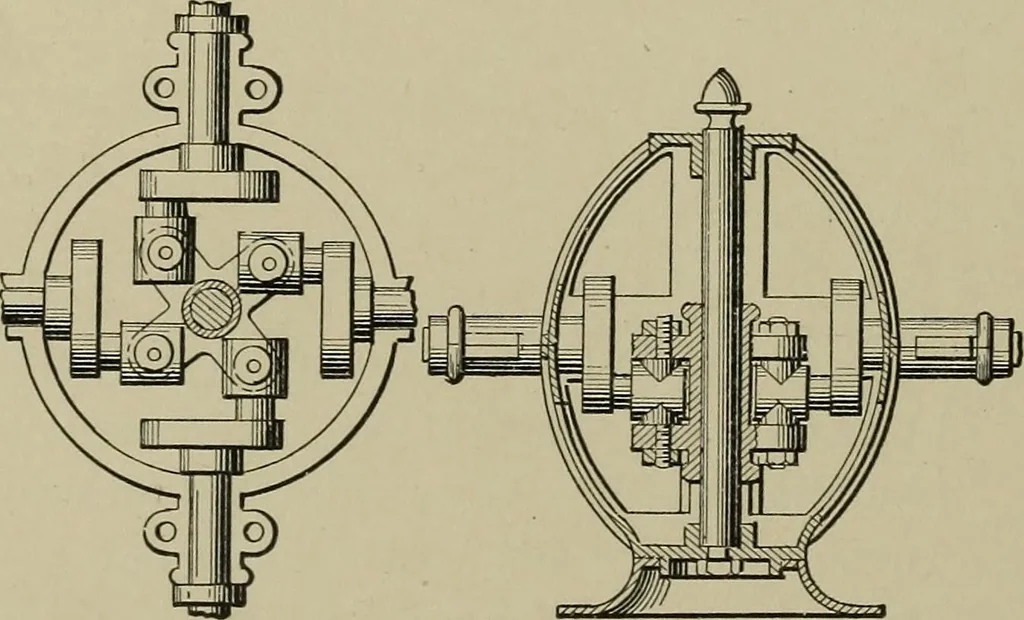

as shown in the planand vertical section.Either shaft may bethe driver. All theshafts must be at rightangles with each other,and in the same planefor perfect action. 646. Vertical sec-tion showing centralsliding post. 647. RECIPROCATING WITH STOPMOTION. A swing lever operated by acrank may have two…
