Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)

Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 160

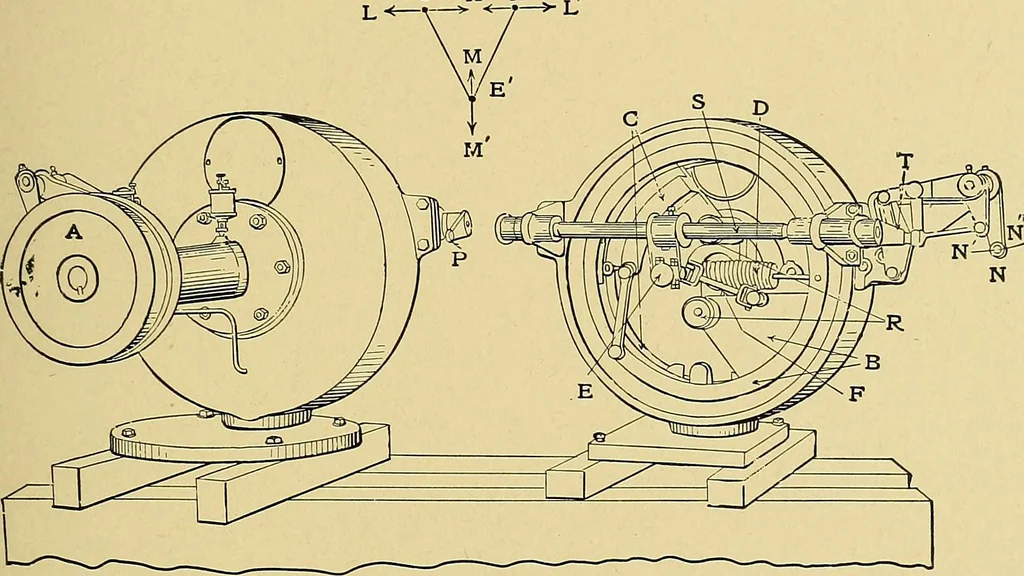

An illustration from Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types, 1908, leaf 160 — ins.diameter. The distance the latch and toe plates move by each other beforeengaging is adjusted by the dashpot rod, and should be kept as small aspracticable. On the smaller size cylinders this amount should not beless than -^ in. and should not exceed ^ in, on the largest size. Adjusting the… … FIG. 154. blocks merel} for the purpose of photographing. Its position on theengine is shown in Fig. 149. The operation of the governor is as follows:The governor weights are caused to revolve by means of a belt actingon the pulley shown at A. The circular weights shoAvn at B and C aresuspended on…
