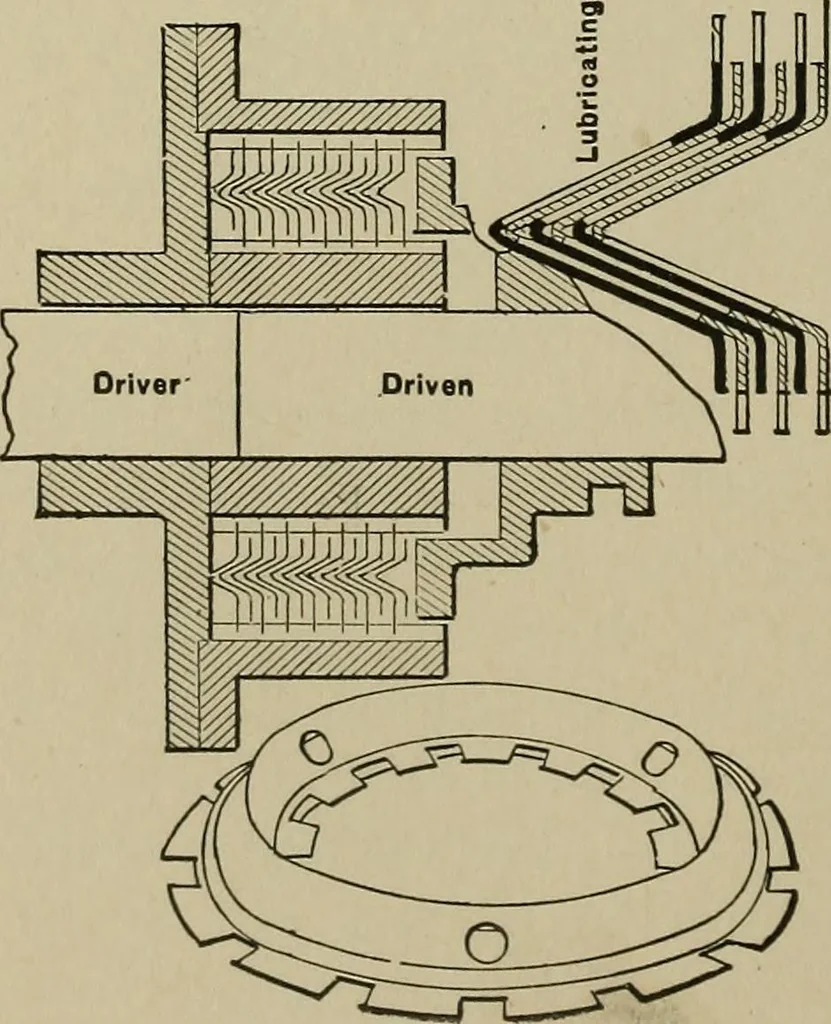

654. FRICTION-PLATECLUTCH. In this model theplates are pressed into V-shapedrings with perforations for lubrica-tion. The V shape allows of agreat friction with light pressure onthe clutch lever. Alternate V plates are fixed toouter shell by their mortised edges,and the intervening plates to…
