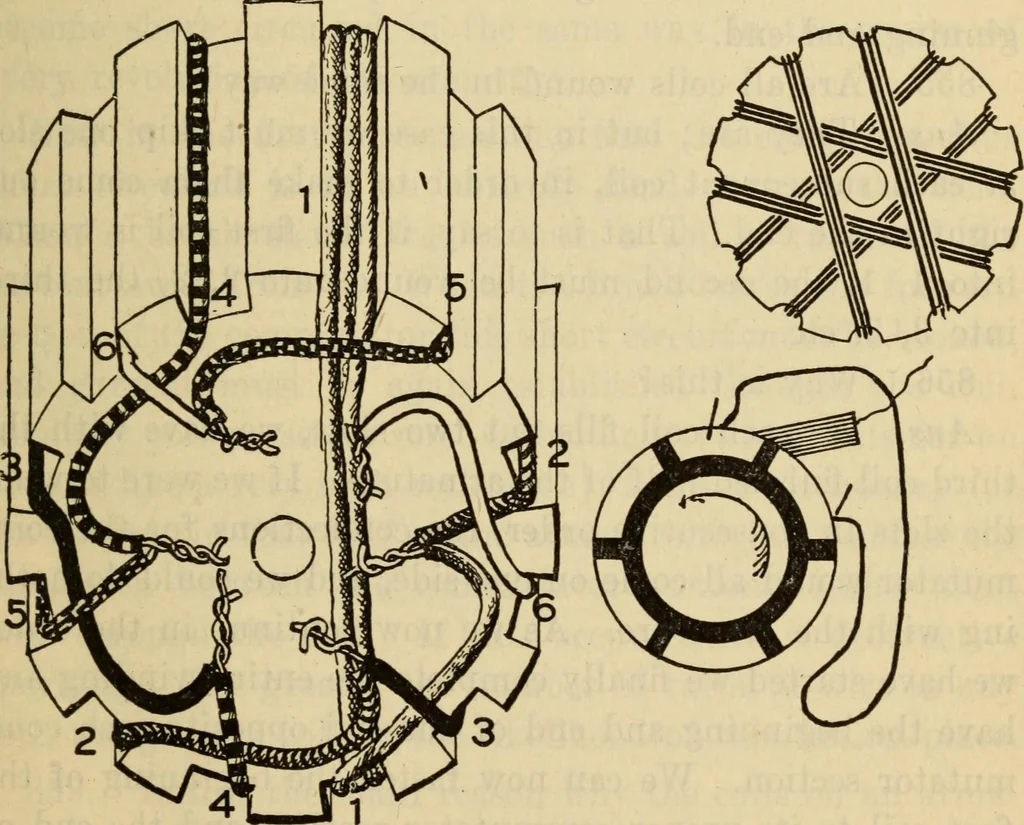

ll confine ourselves to themethods used with hand winding on cylinder armatures. 852. Which is the most simple of these windings? Questions and Answers 1205 Ans. The simplest one of these windings is that shownin Figure 534, and we shall take this one for the purposeof demonstration. It will be… … Fig. 534 Ans. It is not; in fact it is not at all desirable that thisproportion should exist, but this proportion is very con-venient for winding, as we shall see. Begin winding by selecting two of the slots locatedopposite each other, as shown in the figure, and startingat 1 wind into those slots…
