Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 304

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 304

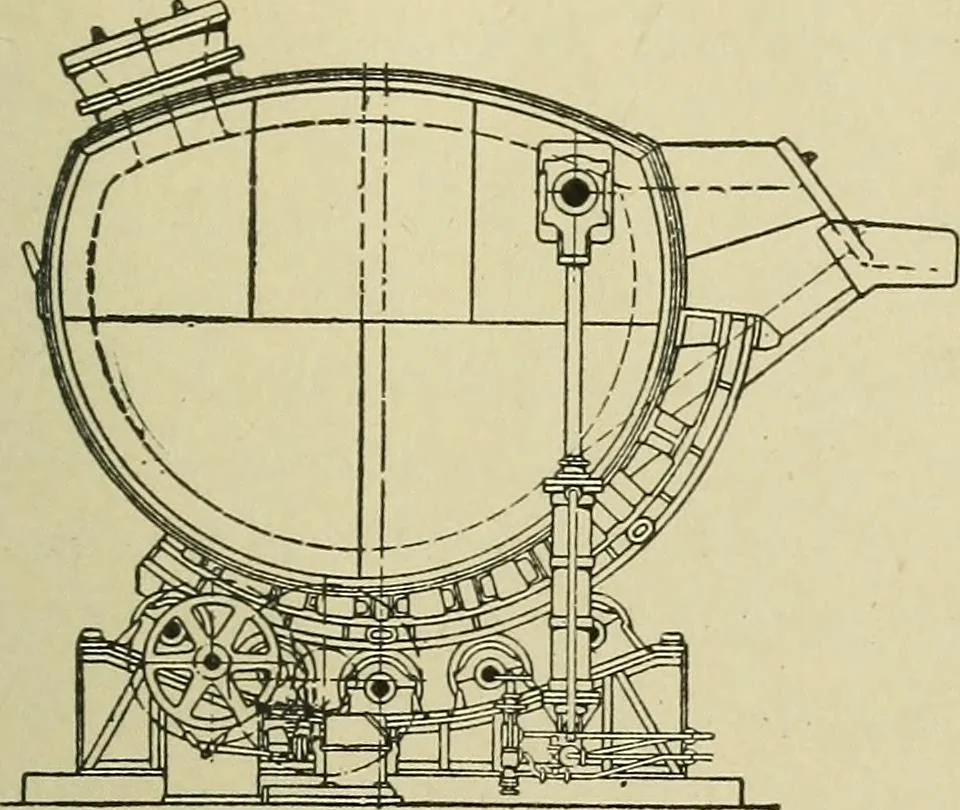

lted. The pinions meshing into the segmentsare driven through gear trains from a 26 horse-power electric motor.An additional tilting device is provided, consisting of a vertical hy-draulic cylinder at either side, with their plungers linked to pins pro-jecting from the sides of the mixer vessel… … 789. HOT-METAL MIXER. Tilting type. The hot-metal mixershown in the cut is designed for a capacity of 275 tons of fluid metal. The maximum external dimensionsof the containing tank are about15 feet diameter and 27 feet length.The shape is cylindrical, with aconical pouring spout at the frontend,…
