Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 309

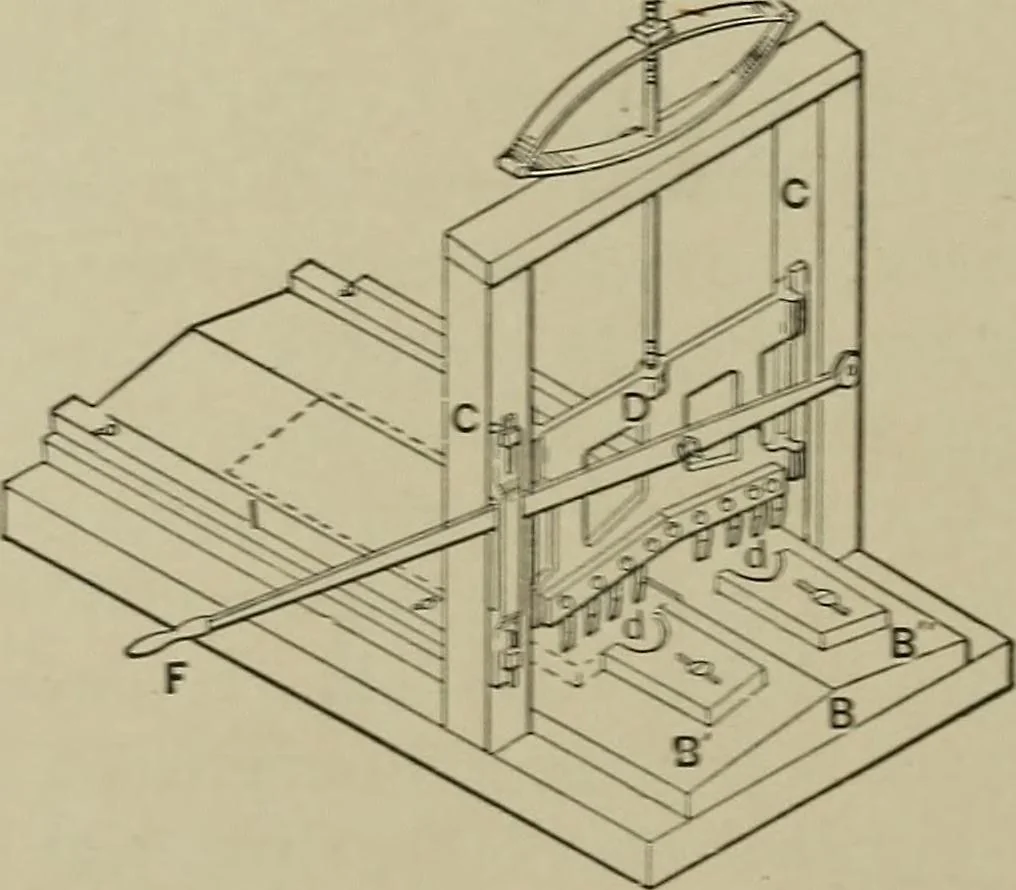

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 309
y height and degree: eparation, and are fixed to theirproper positions by screw bolts.The gate is elevated and depressed by means of a lever. F, and isgauged or arrested in its descent by a stop or shoulder. Stops on theplanes. B, B, gauge the stuff. I is a gauge for the edge of the stuff. The… … MILL AND FACTORY APPLIANCES AND TOOLS, ETC. 305 stuff being then placed on the other incline, and the gate again depressed,the excavation is completed by cutting away the opposite sides. For excavating the mortises, the doubly inclined block, B, is removed,and another gate substituted for the gate,…
