Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 350

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 350

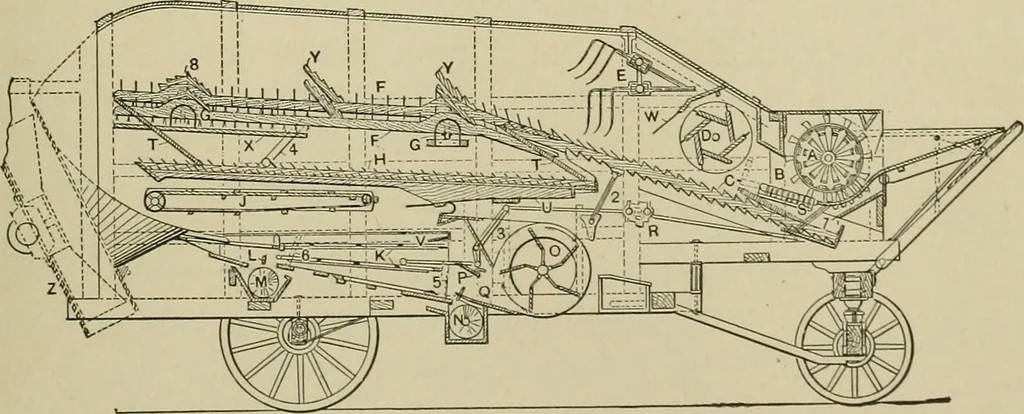

thrown on to the traveling apron, is carried over to the binder, wyhereit is bundled, tied, and dropped on the ground. 885. COMPOUND THRESHER. A threshing-machine study;Reeves type. A, beater drum ; B, separator ; C, carrier ; D, forwarder ; … E, push forks ; F, push rakes ; G, shaking cranks ; K, V, winnowsieves ; O, winnow fan ; M, N, grain chutes. >46 MISCELLANEOUS DEVICES. 886. REFUSE CREMATORY. The figure shows a sectional ele^vation of this destructor furnace in which i is the main combustion chamber, 2 the fire grate, thelower…
