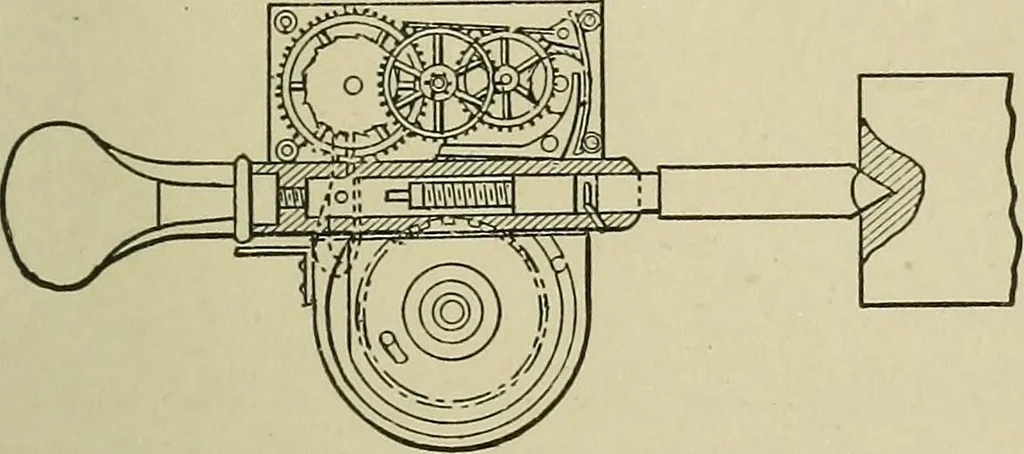

at the grips spreadduring the testing process. The spreading caused the conditions tovary materially and results to be correspondingly inaccurate. Thegrips are made amply strong to prevent any springing. The weightof shot in the 1,000-pound machine is designed for a ratio of 1 to 100;10 pounds of… … 72c. TIMING DEVICE FOR SPEED INDICATOR. An important appliance in making power tests is the speed indicator. The illustration shows aself-timing attachment fora Starrett type. The indi-cator case shown is cut intwo and the two parts con-nected with a hinge orknuckle joint so the wormgear can swing…
