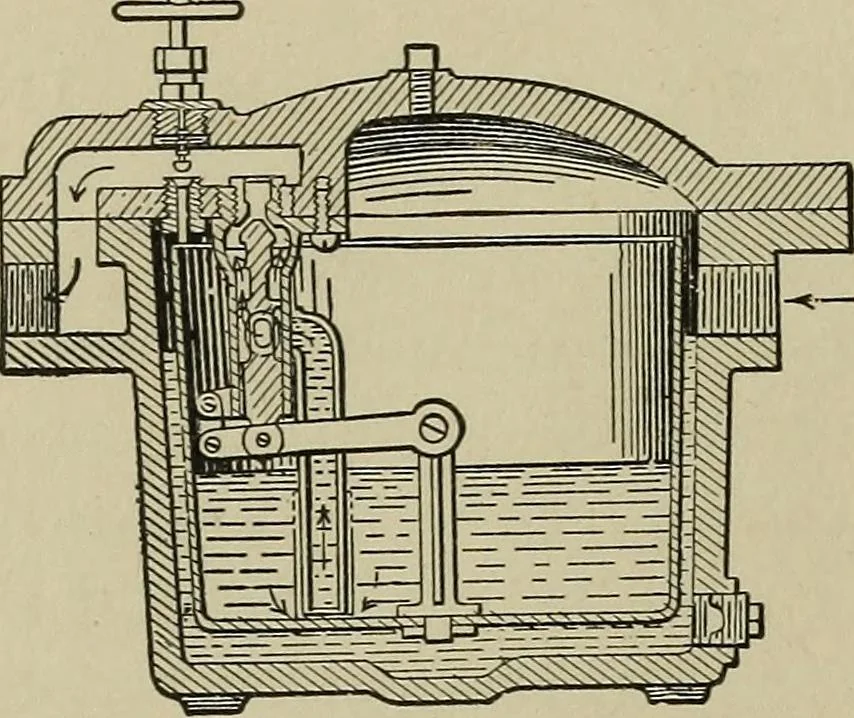

124. SIMPLE FLOAT STEAM TRAP. Eureka type. A tight copper ball with valve andguide stem at the bottom and guide stem in theinlet pipe. 66 GENERATION OF POWER, STEAM. … 125. AUTOMATIC STEAMTRAP. Lawler type. The openfloat by its overflow and filling,sinks, and opens the discharge valveby its lever connection. When thefloat is emptied by the steam pres-sure, the float rises and closes thevalve.
