Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 96

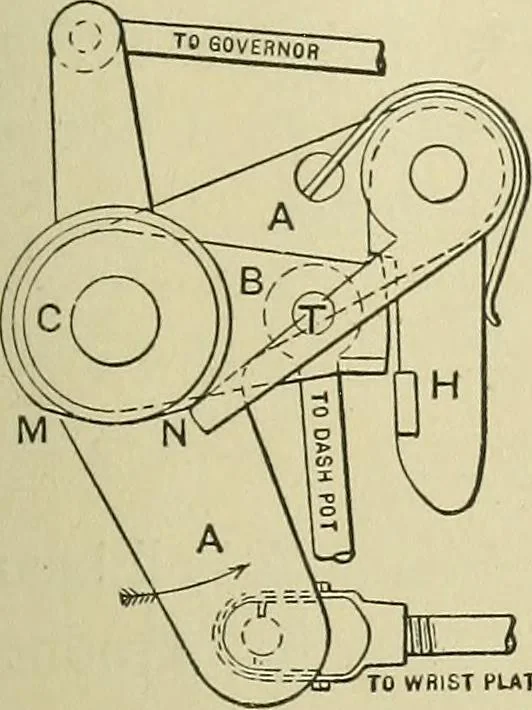

wn), the hook H, which is forced inward by the spring, engages with the droplever B, and as the bell-crank lever, A, A, movesin the direction indicated by the arrow, thelever B is carried around to the position shown,opening the valve. When this position is reached,the trip lever T comes in contact… … TO WRIST PLATE 195. DASHPOT FOR CORLISS ENGINE. As the plunger,P, is drawn upward by the valve gear, air is drawn into the plunger cylinder from the annular chamber, A, throughthe check valve C. The air is not sufficient,however, to prevent the formation of a partialvacuum which draws the plunger…
Mechanical movements
