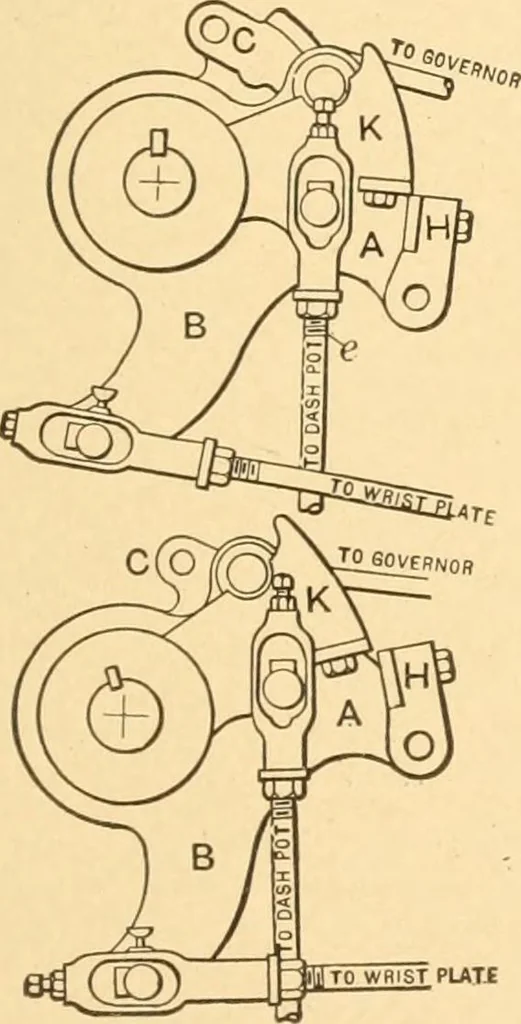

188. CORLISS VALVE GEAR. In thisdesign, B is the bell crank, which carries thehook H mounted on a short shaft, on theother end of which is the trip lever (not shown),which engages with the knock-off cam C, oper-ated by the governor rod. K is the drop leverwith dashpot connection. The cam lever…
