Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work (1899)
Watson, Egbert P. (Egbert Pomeroy) · New York, D. Van Nostrand company · leaf 57

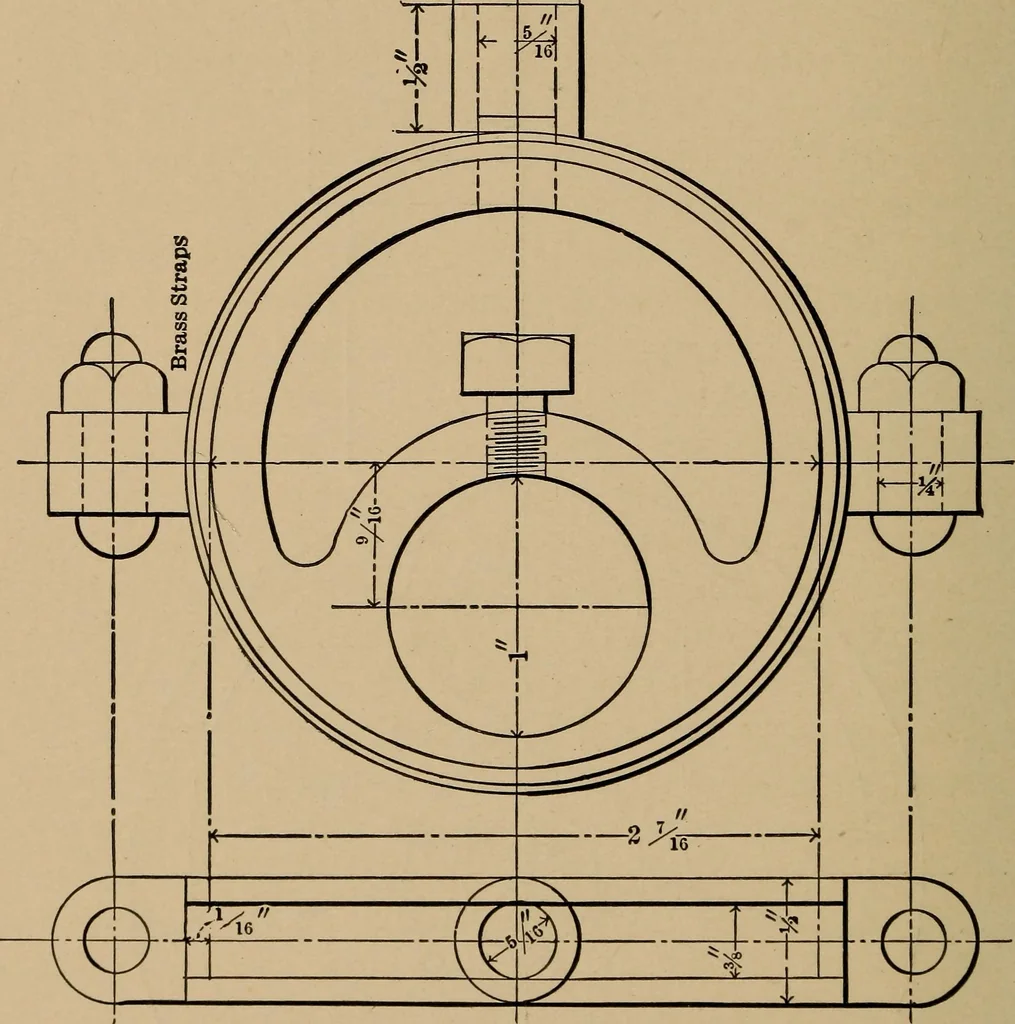

Fig. x;< 4Q SMALL ENGINES AND BOILERS. viously, reverse the crank and put the face-sidenext to the face-plate, with the crank-eye in thecentre in position to be drilled, being sure thatthe crank is flat against the face-plate all over. I« 1 H4 T … The eccentrics are of cast-iron, and can be allfinished in the lathe without any trouble at all.Chuck them true, and face them off both sides,then bore the hole on one side for the shaft. CHAPTER VII. We must now consider the link and its con-nections ; and in this job the amateur will have…
