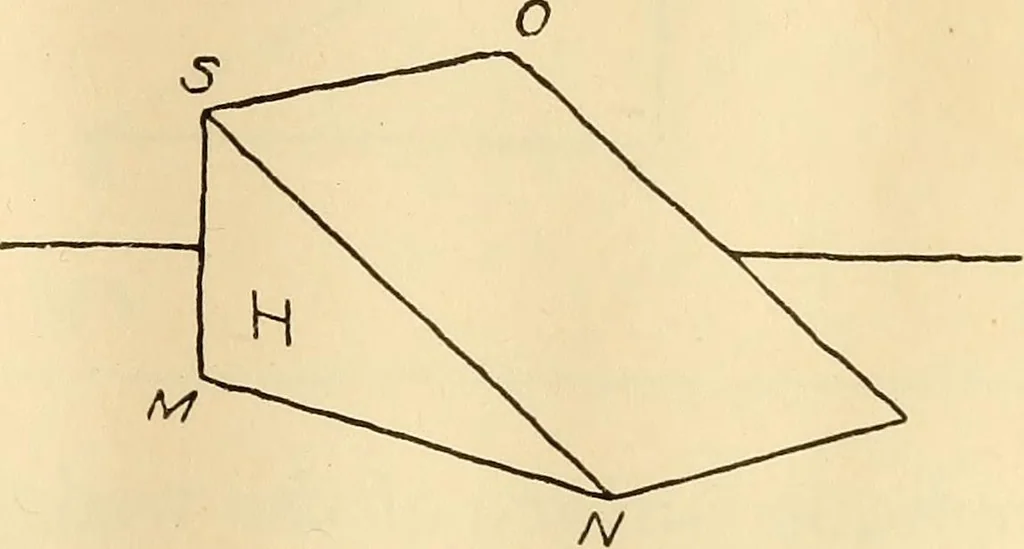

-_£>iL-Z5: ■ Plate 3. Extra Plate CHAPTER VII OBJECTS WITH OBLIQUE SURFACES PLATES 4, 5, AND 6 In rectilinear objects, such as we have presentedin Plate 3, the parallel lines of sight producing theviews are at right angles to the surfaces drawn,thereby giving views which are exact… … ^9, O^ side view would be a rectangle with the horizontal di-mension equal to S O, and the vertical dimensionequal to N S, which is, of course, the same as the ver-tical dimension of the front view. The top view wouldhave for its horizontal dimension the distance M N,the same as the horizontal…
