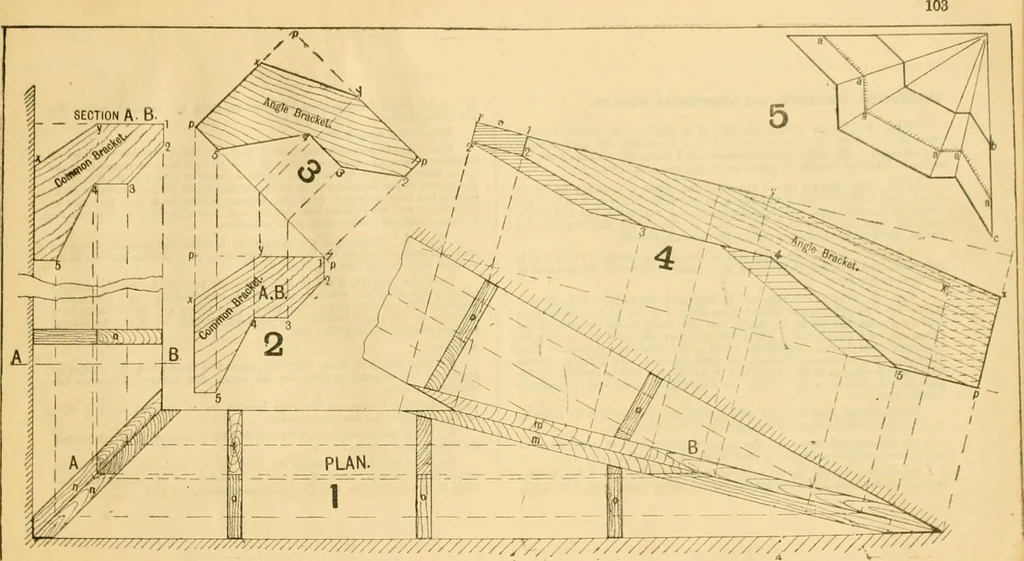

r of an octagon plan,determine the angle bracket. 2. Show the necessary amount of bevel for the angle bracket n n Fig. 1. 3. Determine the size of the small brackets o, o; next to the acuteangle B. i. Show by your drawing that in two angles, one a right-angle and theother for the angle of an… … BRACKETING, ENLARGING and DIMINISHING MOULDS. Fig. Shows a right section of a bracket, the profile being a Fig. la. Draw a line to represent the angle or intersecting line aso to 1, and from the first points draw in the lines 2, 2, dx , then from thepoints on the angle line, erect perpendiculars…
