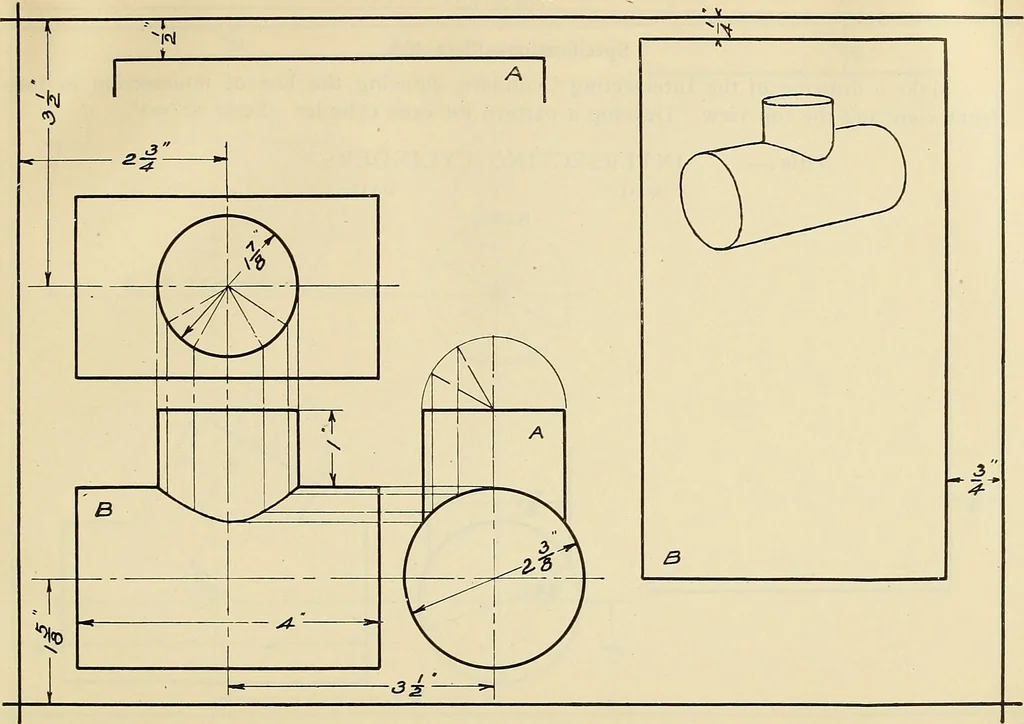

146 MECHAXICAL DRAWING PROBLEMS Specification—Plate 40. Make a drawing of the Intersecting Cylinders, showing the line of intersection. Developa pattern for each cylinder. Scale i2=i. Title:— INTERSECTIXG CYLINDERS SCALE DATE NAME PLATE 40 … I 8 MECHANICAL DRAWING PROBLEMS Specification—Plate 40A. Make a drawing of the Intersecting Cylinders, showing the line of intersection in thefront view and the top view. Develop a pattern for each cylinder. Scale i2=j. Title:— INTERSECTING CYLINDERS SCALE DATE NAMF, PLATE 40A
