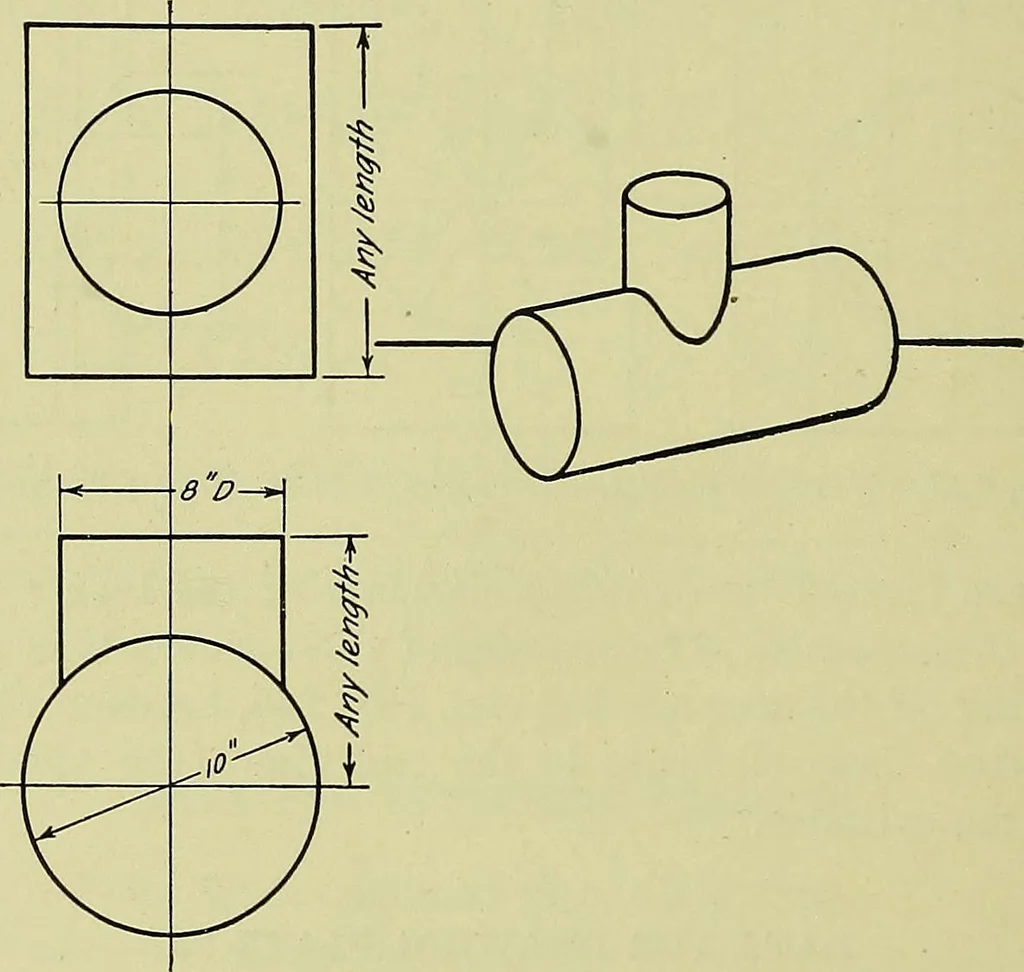

Fig. 246. Eave Trough and Down Spout … Fig. 247. Furnace Smoke Pipe DATA FOR LETTERING PLATE 33 Given: Plate 33 to reduced size. Fig. 248.Required: To make the plate to an enlarged scale. ADVANCED DEAWING 223 PREPARATORY INSTRUCTIONS FOR DRAWING PLATE 34 In the preceding plates, elements were first drawn in the cylin-der to strike the…
