Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 44

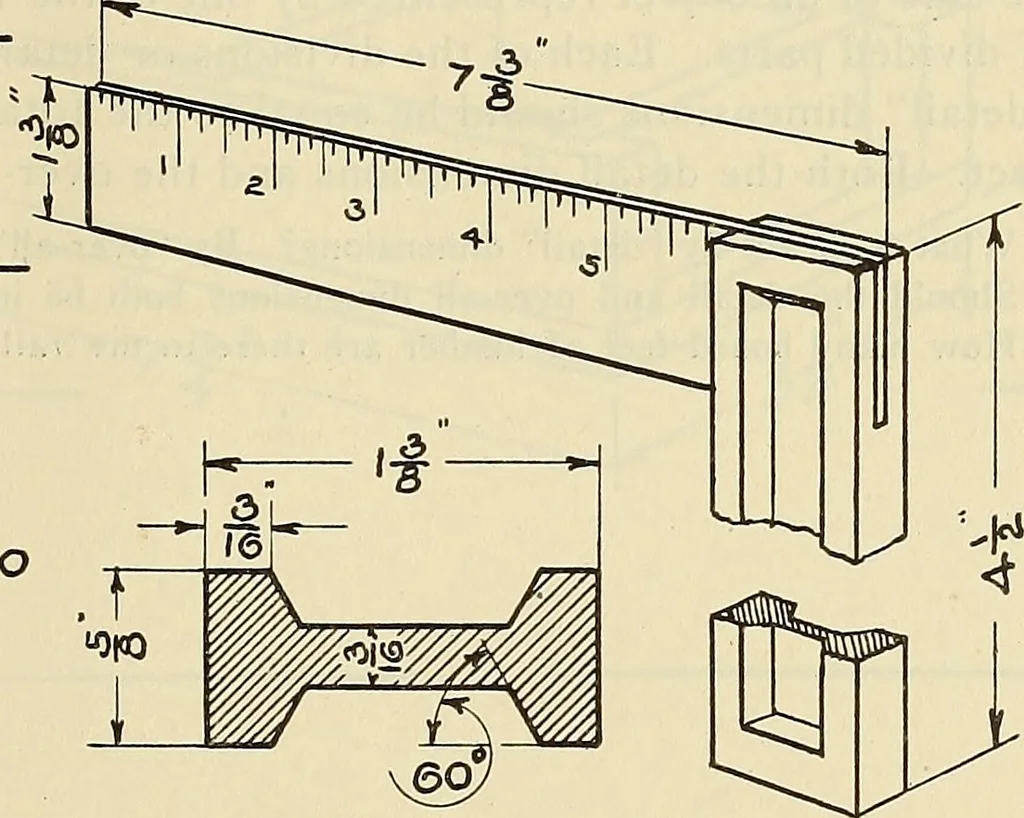

to indicate the shape and dimensions of part of an object byan isolated section. Section o-o is an isolated section taken on line o-o in the workingdrawing of the Try-square and is drawn to twice the size. It is customary to show only theoutline of the actual surface cut, and the view may be placed… … 42 MECHANICAL DRAWING PROBLEMS Specification—Plate 9. Make a complete working drawing of the Nail Box, showino- the front view, top viewand right-side view. All material is }i thick. Scale 12 =1. Title:— NAIL BOX SCALE DATE NAME The side of an object represented by one of the views often consists…
Mechanical drawing
