Mechanical drawing problems for high schools, normal schools and vocational schools (1918)

Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 70

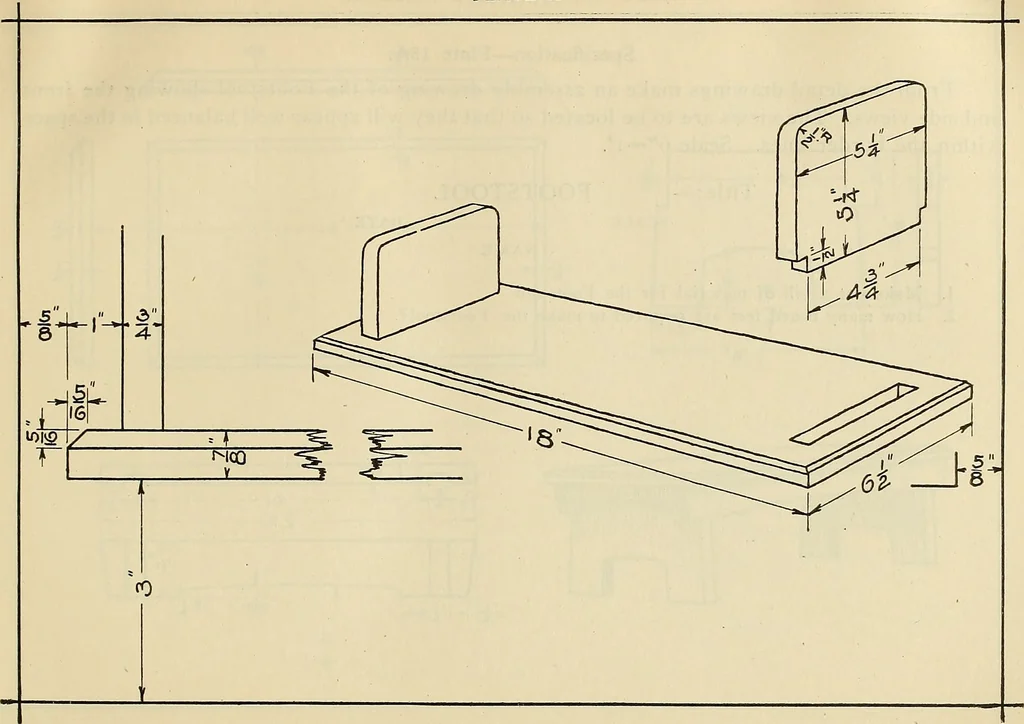

An illustration from Mechanical drawing problems for high schools, normal schools and vocational schools, 1918, leaf 70 — to be constructed of wood, is a tabulated statementwhich gives the number wanted, the size, the material and the name of each piece required tomake it. Lumber sizes should be given in the following order: Thickness by Width by Length. 1. Make out a bill of material for the Book-rack using the form… … 68 MECHANICAL DRAWING PROBLEMS Specification—Plate 15 A. From the detail drawings make an assembly drawing of the Footstool showing the frontand side views. The views are to be located so that they will appear well balanced in the spacewithin the border lines. Scale 6=i. Title:— FOOTSTOOL SCALE…

Mechanical drawing
