Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 84

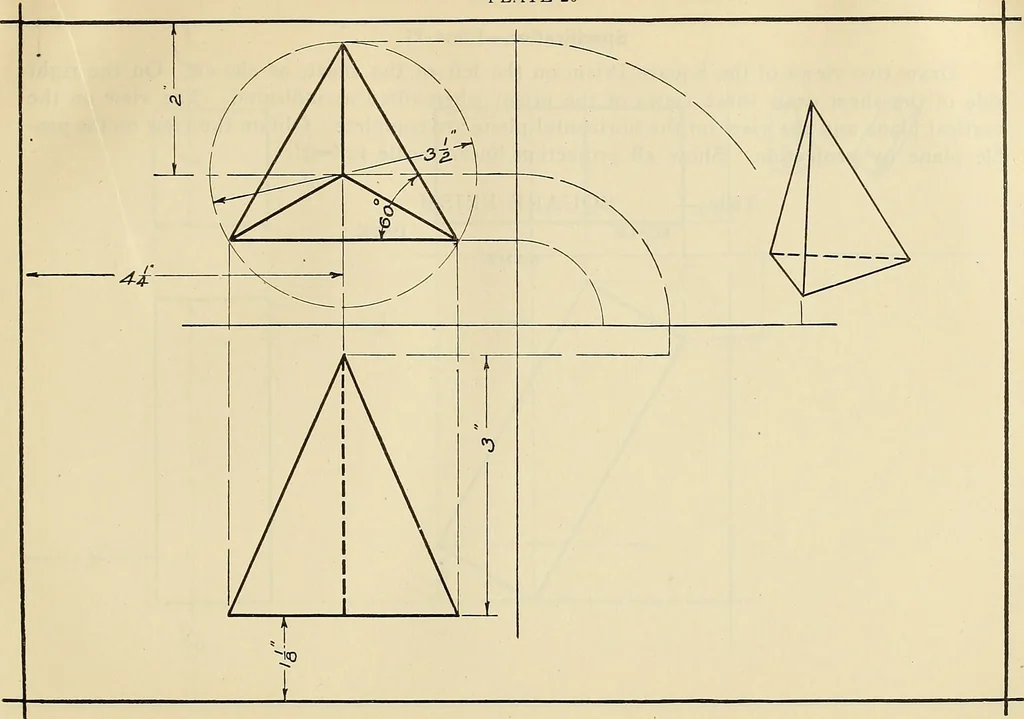

8o MECHANICAL DRAWING PROBLEMS Specification—Plate 20. Obtain the view on the right profile plane by projection. Show all construction andprojection lines. Scale i2=i. Title:— TRIANGULAR PYRAMID SCALE UATE NAME PLATE 20 … 82 MECHAXICAL DRAWIXG PROBLEMS Specification—Plate 21. Draw two views of the Square Prism on the left of the sheet, as shown. On the rightside of the sheet draw three \iews of the prism when tilted as indicated. The view on thevertical plane and the view on the horizontal plane are complete. Obtain…
Mechanical drawing
