Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 170

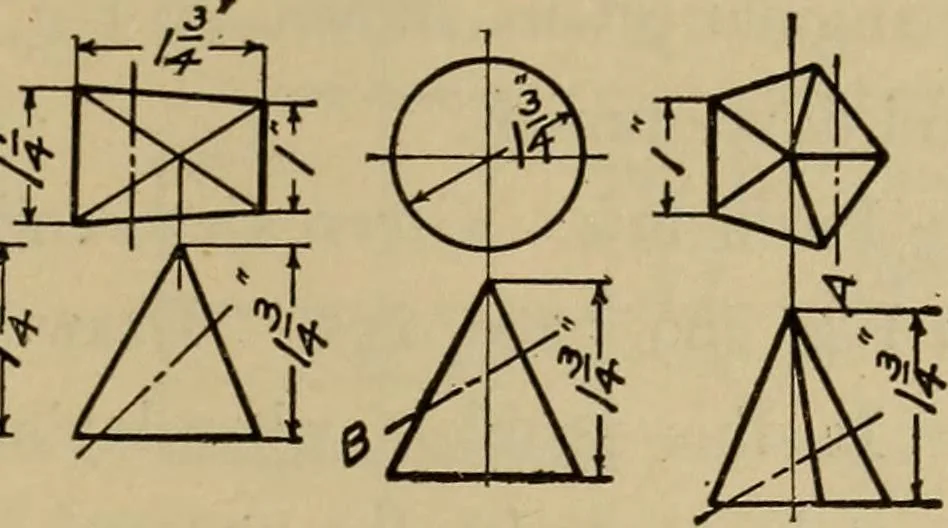

ge 153. Use same dimensions given in Fig. 197. Problem 3. Given the elevation and plan of a wedge, drawthe projection on the auxilary plane, shown in Fig. 205c page 153.Use same dimensions given in Fig. 202. PROBLEMS IN MECHANICAL DRAWING. J55 Problem 4. Given elevation, plan, and revolved position… … Fig. 2c6. Fig. 207. Fig. 208. Fig. 209. Fig. 210. Fig. 211.
