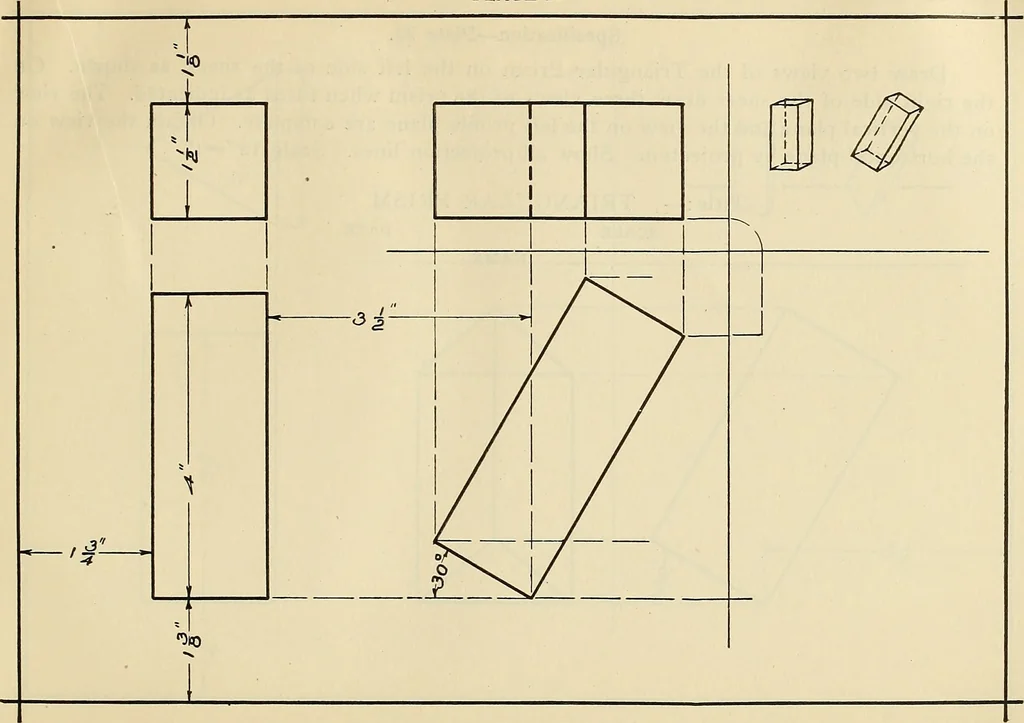

82 MECHAXICAL DRAWIXG PROBLEMS Specification—Plate 21. Draw two views of the Square Prism on the left of the sheet, as shown. On the rightside of the sheet draw three \iews of the prism when tilted as indicated. The view on thevertical plane and the view on the horizontal plane are complete. Obtain… … 84 MECHANICAL DRAWING PROBLEMS Specification—Plate 22. Draw two views of the Triangular Prism on the left side of the sheet, as shown. Onthe right side of the sheet draw three views of the prism when tilted as indicated. The viewon the vertical plane and the view^ on the left profile plane are…
