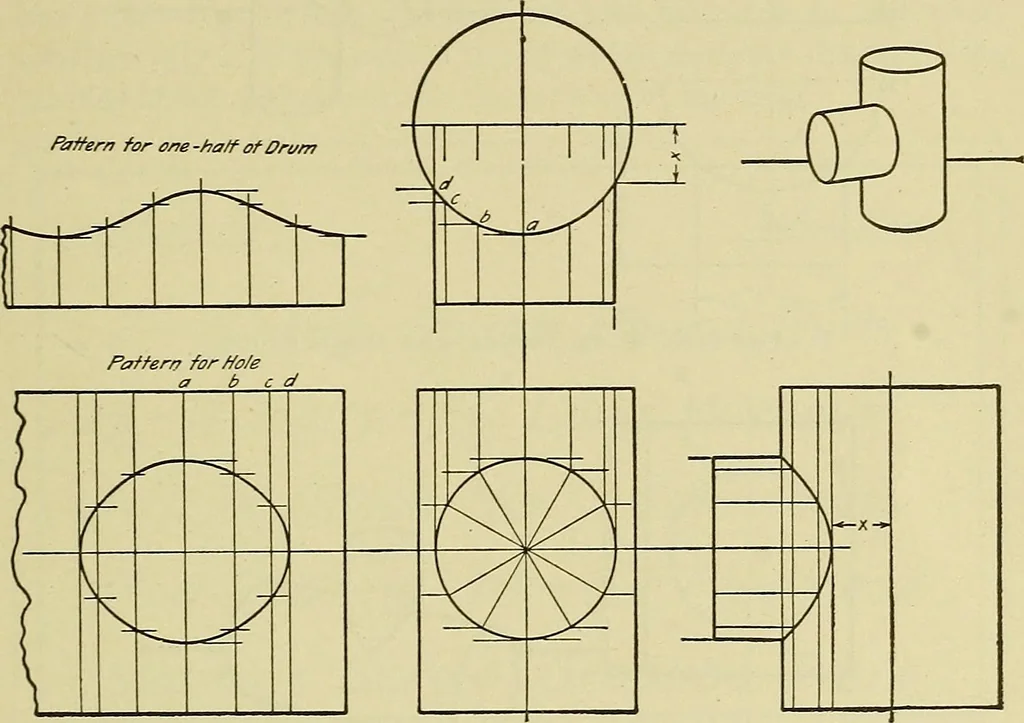

PARATORY INSTRUCTIONS FOR DRAWING PLATE 33 The laying out of patterns for the surfaces of two intersectingcylinders involves the same general principles as described for ADVANCED DRAWING 221 the intersection of the prism and cylinder in Plate 32. The baseof the smaller of the two cylinders should… … Fig. 245. Type Problem. Intersection of Two Cylinders surface are located by drawing elements of the larger cylinderthrough these points. The spacing of these elements is obtainedby stepping off the arcs ab, b c, etc., Fig. 245, between the pointsrepresenting these elements in the end view (top…
