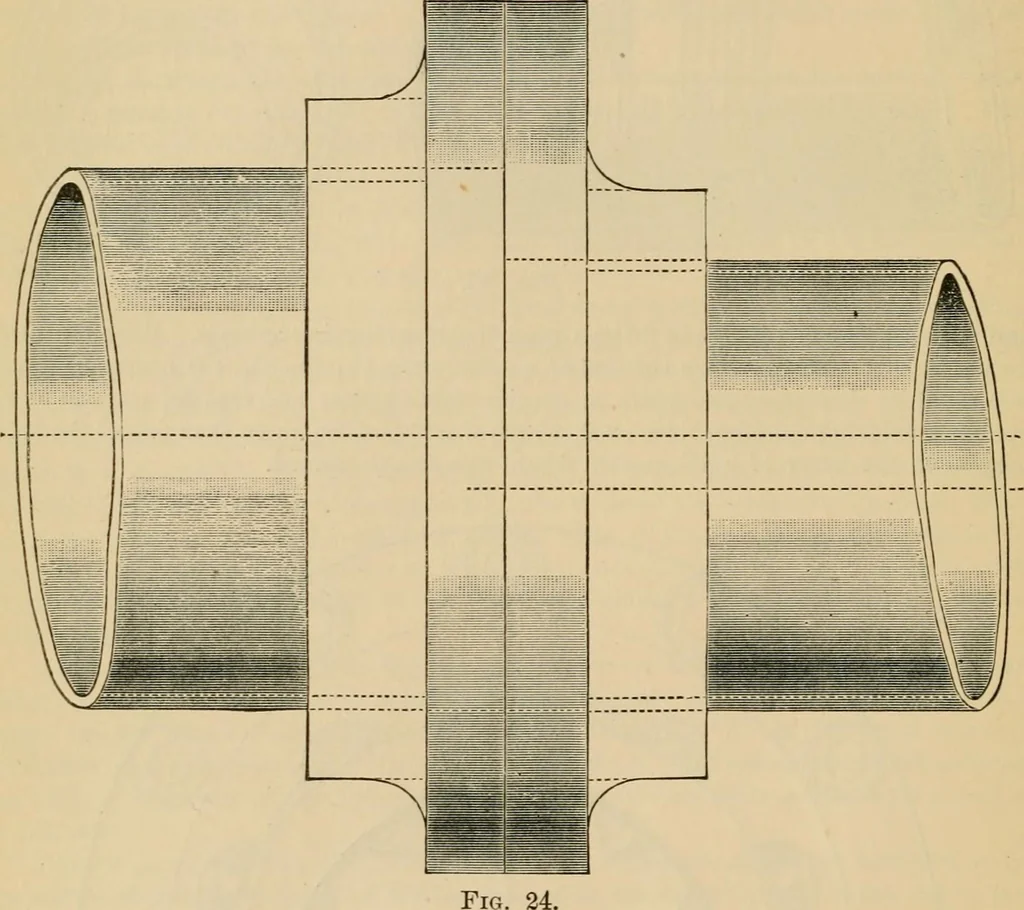

ld be used withadvantage on all sizes of jiipe up to eight or ten inches in diameter. Figs. 23 and 24,end and side views, of flange couplings for the larger sizes of pipe. The constructionwill be readily understood from an inspection of the cuts. The oftset is just sulhcientto bring the under sides… … as soon as there is any demand for them. They will be found of far more use, andwould probably be used a hundred times at least where a cross-valve is used once, stillthe latter is a standard fitting because it is occasionally called for. CONNECTIONS FOR ROTARY BOILERS. When rotary boilers, as used…
