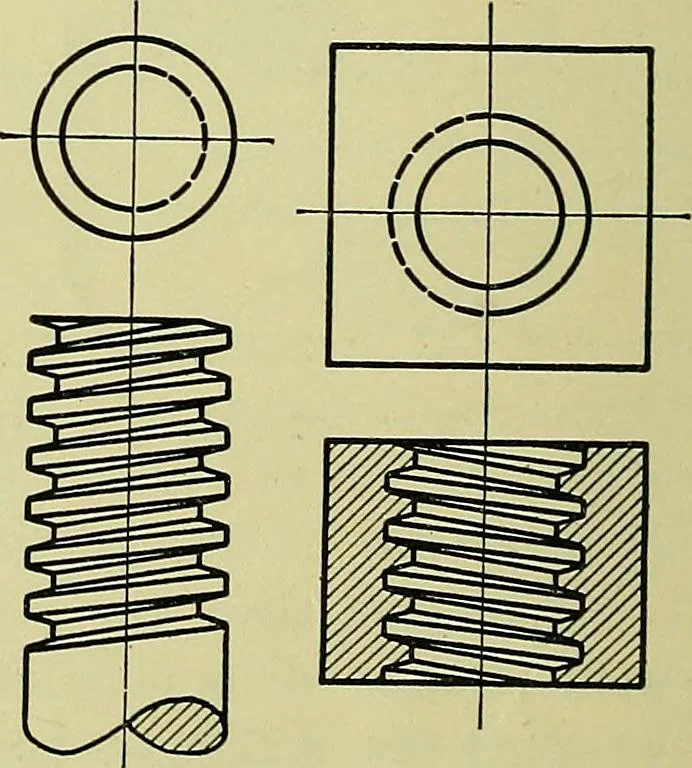

Fig. 287. Square Thread. Conven-tional Representation for Small Sizes (254) Fig. 288. Acme Thread. Con-ventional Representation ADVANCED DRAWING 255 Pipe Thread. The basic form of the Briggs standard pipethread is that of the V-thread. This thread is rounded slightly.at the outer and inner edges. A…
