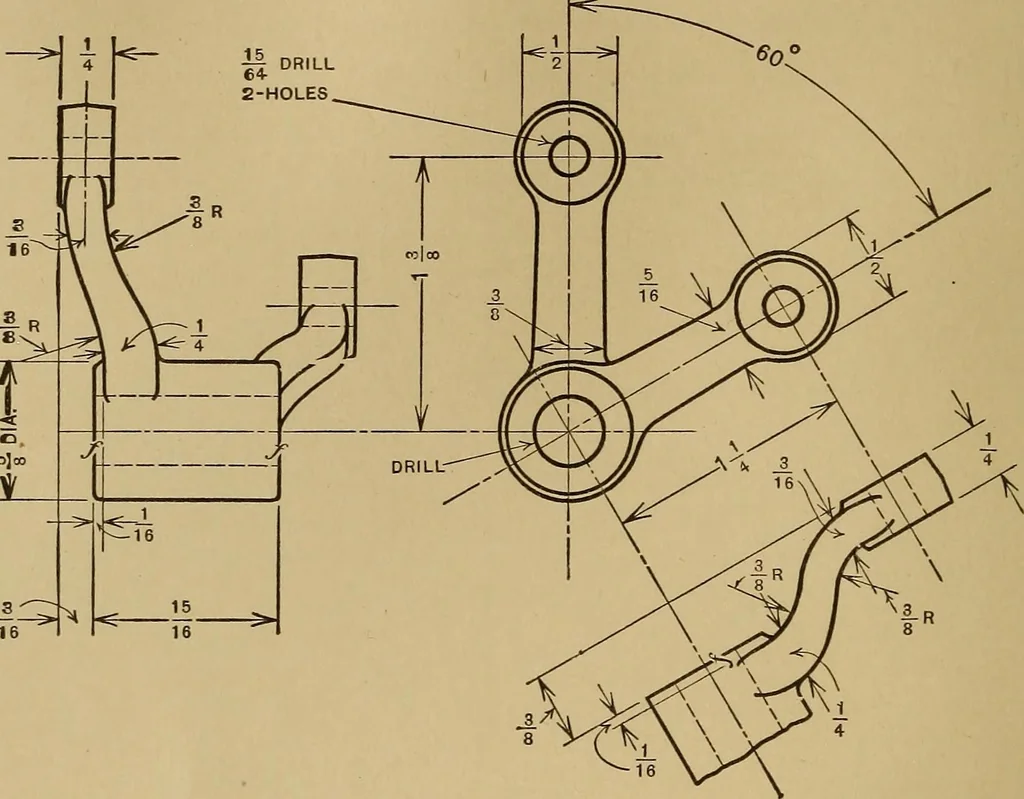

r topview of the inclined part of the casting, or, in other words,it corresponds to the view that would be obtained if thelines were projected upon a plane parallel to the beveledsurface. 26 MECHANICAL DRAWING The bellcrank shown in Fig. 13 also has an auxiliary view.The two arms of the bellcrank… … Machinery Fig. 13. Drawing of a Bellcrank left-hand view, and then place a note on the drawing explainingthat the other arm is a duplicate. In this case, however, aspecial detail drawing is needed. As will be seen, it showsthe inclined arm just as if it were viewed squarely from theside;…
