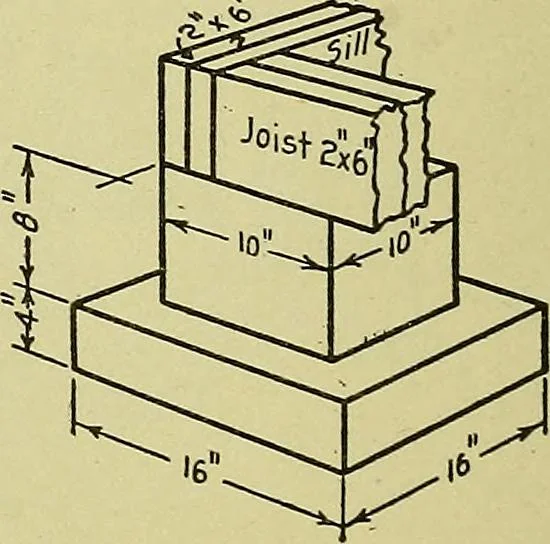

■ I t Petail of Si/I and Footings ^\^~-\Bioct( naiied to joists_ i| Ij fie rod yy/th nut a, and (vasher Fig. 341. Cornice Details … CHAPTER VI - ISOMETRIC AND CABINET DRAWING PREPARATORY INSTRUCTIONS FOR DRAWING PLATE 52 Isometric Drawing is a mechanical method of representingobjects pictorially. The object may appear somewhat distortedwhen drawn by this method, but to one who Is not accustomedto reading orthographic drawings…
