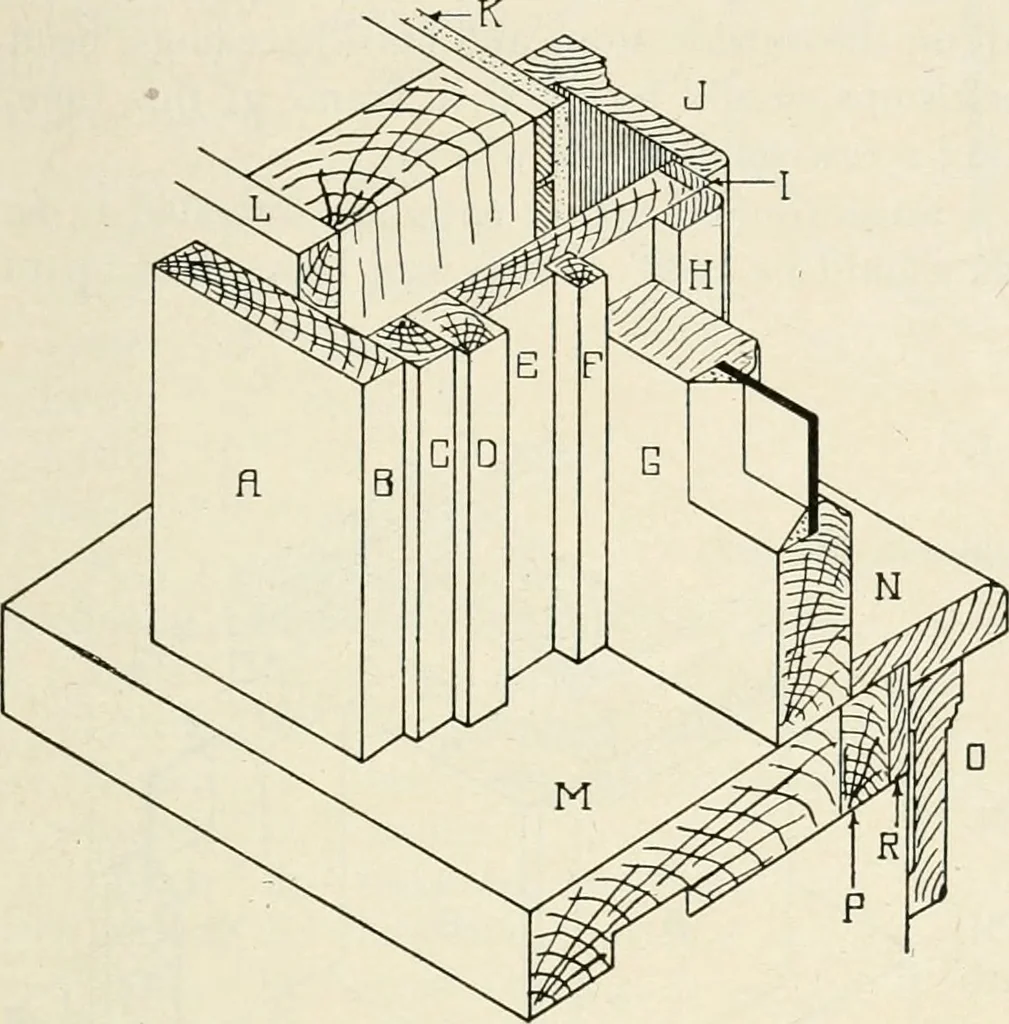

etter H shows inside stop. Letter I shows plaster stop, which is only to be used in case that lathand plaster are furnished. Where plaster board is used it is to be kept out offrame. This stop is 5/16x3/4 in.Letter J shows inside casing.Letter K, lath and plaster.Letter L, outside wall sheathing.… … Tig. 201—Checkrail window frames. 250 ALADDIN MANUAL OF CONSTRUCTION Letter R shows bark sill, which is only to be used when lath and plasterare furnished, 5/16 inch thick. After carefully studying the detail of frames, pick out the sill, the headand two side jambs. Nail these together and square…
