Mechanical drawing for secondary schools (1916)

Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 313

An illustration from Mechanical drawing for secondary schools, 1916, leaf 313

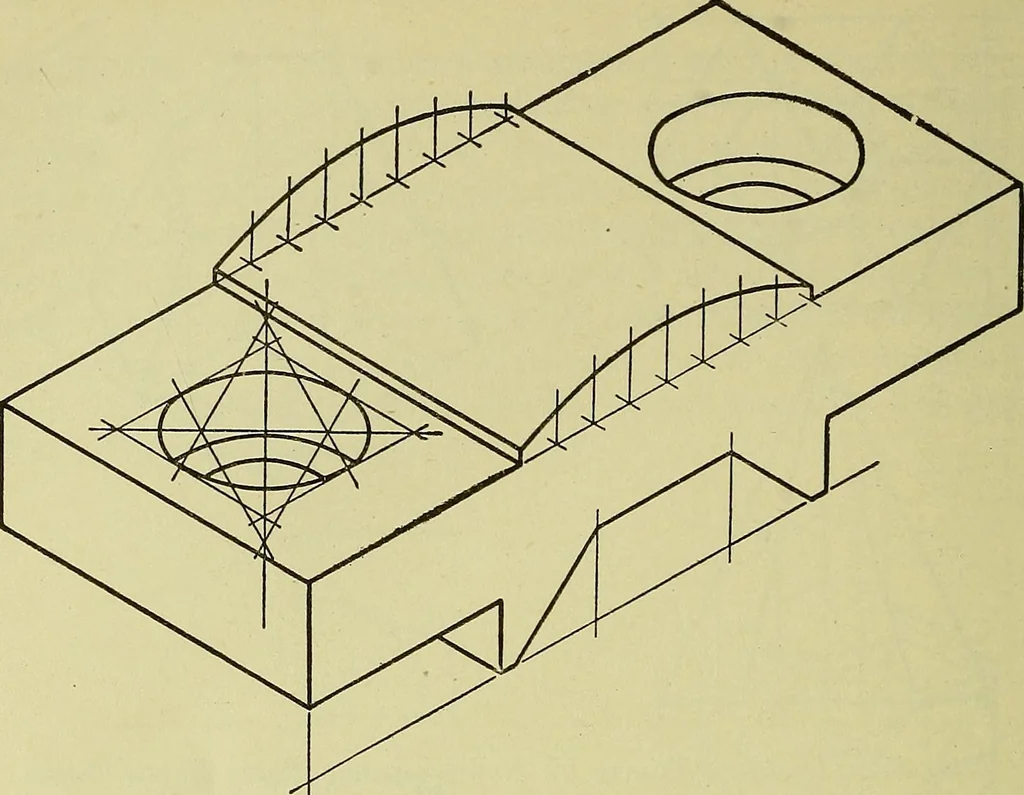

Fig. 345. A Four-Center Method for Drawing Circles in Isometric (307) … Fig. 346. Methods of Drawing Circles and Arcs n—\-f7 —I—I Lj -I I
