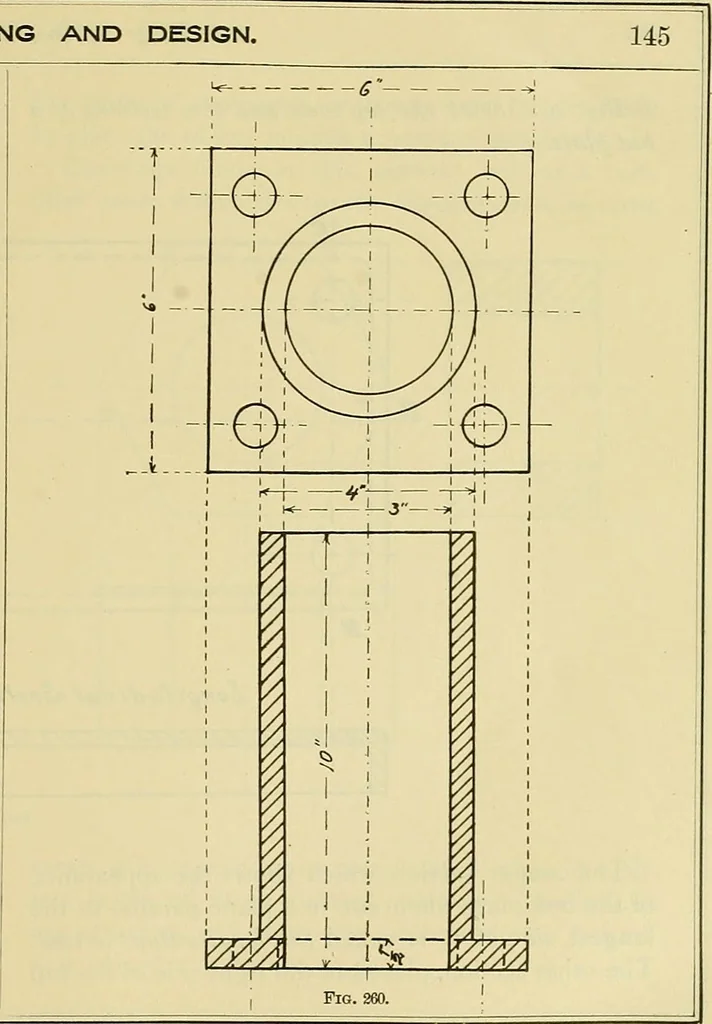

Fig. 259. … 146 ROGERS DRAWING AND DESIGN. Fig. 261 shows the top view and two sections of abed plate. view, is a section parallel to the short side of the bedplate and is called a cross section or a lateral section.
