Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 317

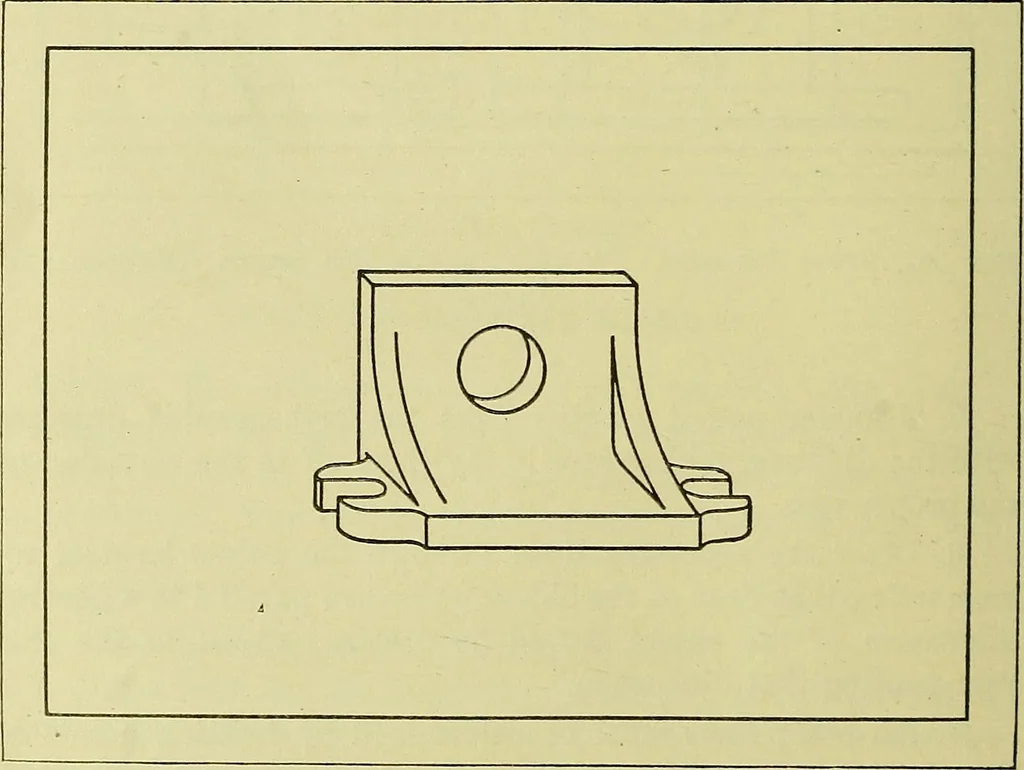

Fig. 352, Type Problem. Isometric of Jig for Rod Brass … (312) pjq^ 252^ Type Problem. Cabinet of Jig for Eod Brass ISOMETRIC AND CABINET DRAWING 313 DATA rOR DRAWING PLATE 53 Giren: The orthographic views of a crosshead brass. Fig.354. Required: To make an isometric (or cabinet drawing) ofthe object shown in Fig. 354, or any similar problem assignedby…
Mechanical drawing
