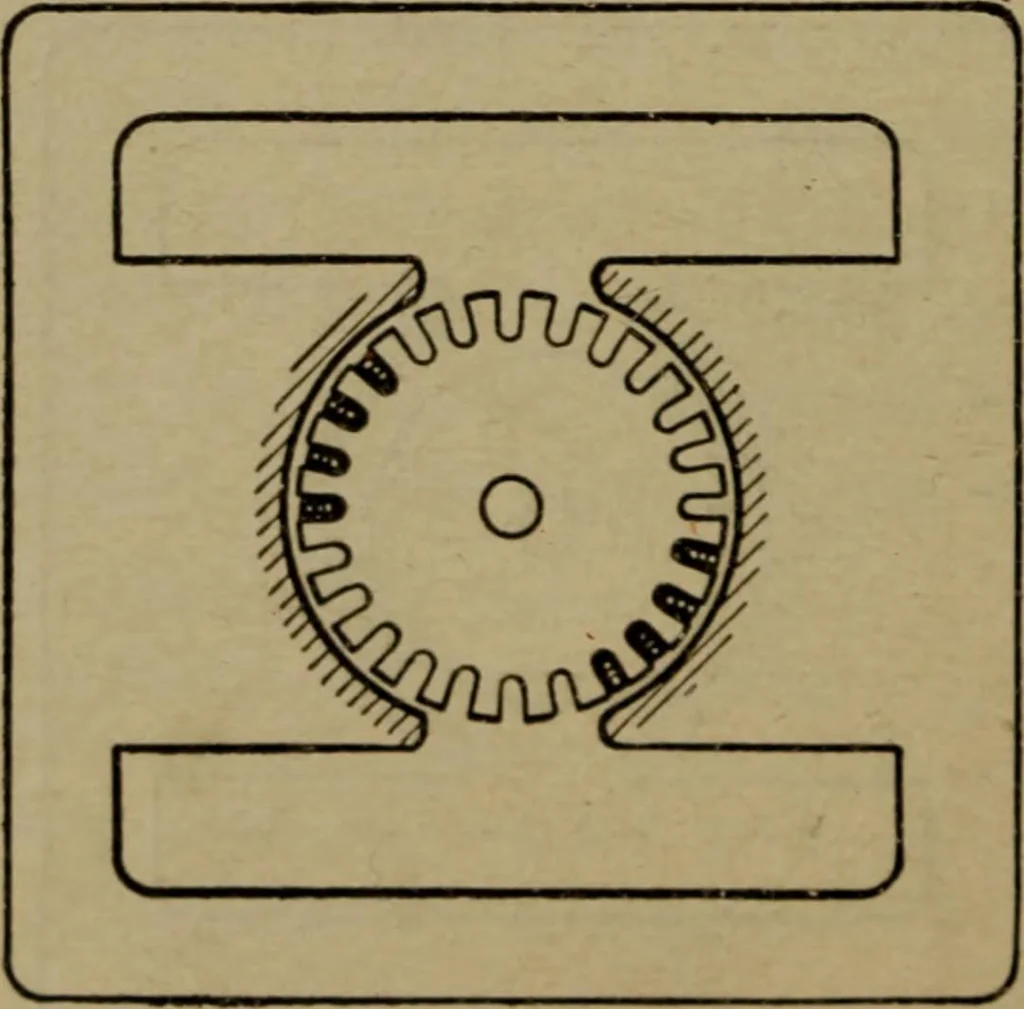

through the cir-cuit. The resistance to the magnetic flux in the air gap ofthe ironclad armature is not mer one-flfth that in a smoothcore armature of the same capacity. The ironclad arma-ture maj^ be run so that there is only enough room betv^reenthe armature iron and the iron of the field frame… … Figure 30Iron clad armature. ^ 67 gives them perfect mechanical support, so that there is notendency to slide or move from their places as there is inthe smooth core armature. Practically all of the magnetic flux that passes into thearmature must get through the bottom of the iron teeth ofthe…
